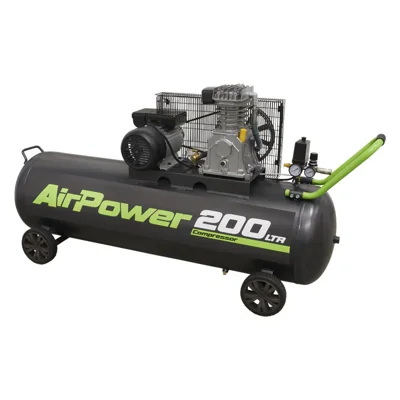

Sealey Air Power 200L Belt Drive Aluminium Air Compressor
- 200 litre belt drive
- 10.3cfm displacement
- 6.4cfm max air flow
- 116psi max pressure
- 3hp motor
- Aluminium cylinders
The Sealey Air Power 200L aluminium air compressor is a heavy-duty 3hp belt-drive air compressor that delivers a powerful compressed air supply for demanding workshop applications. With a substantial 200-litre receiver tank and sturdy construction, this compressor provides a constant source of air at up to 116psi.
Powerful air delivery
At the heart of this electric air compressor is a belt-driven pump that displaces 10.3cfm (293L/min) of air and delivers a maximum free air flow of 6.4cfm (180L/min). The pump is driven by a 3hp motor designed to run cool and efficiently, thanks to a flywheel that forces air over the pump unit. The aluminium cylinders and cast iron liners provide reduced weight and improved resistance to wear for a long service life.
Built to last
This Sealey air compressor is precision-engineered for reliable performance. The heavy-duty drive guards protect the belt and flywheel, while the 200-litre receiver tank is welded to exacting standards to meet Pressure Vessel Directive requirements. At 116psi maximum pressure, it can power a wide range of air tools and equipment. This robust, general-purpose compressor is suitable for workshops requiring a constant high-pressure air supply. Easy maintenance and servicing ensure minimal downtime.
With its powerful air delivery, substantial capacity and durable construction, this belt drive air compressor provides an efficient and reliable workshop air solution. This heavy-duty compressor will provide years of trouble-free service.
This is a heavy piece of equipment, so extra assistance will be required at the delivery point to ensure its safe delivery.
| Air Displacement cfm(L/min): | 10.3cfm(293L/min) |
| Maximum Free Air Delivery cfm(L/min): | 6.4(180) |
| Maximum Pressure: | 116psi(8bar) |
| Minimum Rated Supply: | 13A |
| Motor Output: | 3hp |
| Nett Weight: | 105kg |
| Noise Level: | 97dB(A) |
| Oil Capacity: | 3 x 0.3L |
| Outlet: | Quick release coupling |
| Phase: | 1ph |
| Receiver Capacity: | 200L |
| Size (W x D x H): | 1650 x 520 x 820mm |
| Speed: | 1000rpm |
| Supply: | 230V/13A |
Powerful 3hp Motor: Drives the pump efficiently for constant high-pressure air delivery in demanding applications.
200 Litre Capacity: Substantial twin cylinder receiver tank stores more compressed air for continuous use.
Aluminium Cylinders: Reduced weight compared to cast iron improves portability and resistance to wear.
Cast Iron Liners: Robust cast iron pump liners are hard-wearing for increased service life.
Belt Drive Design: Allows convenient servicing and maintenance for minimal downtime.
Maximum 116psi: Suitable for powering most workshop tools and equipment that require high pressure.
Precision Welded Tank: Manufactured to Pressure Vessel Directive for safety at high pressures up to 116psi.
