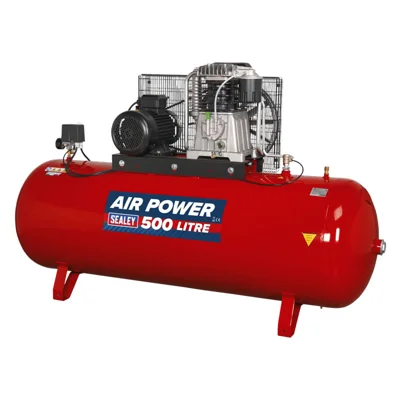

Sealey Air Power Belt Drive 2 Stage Air Compressor - 500L 415V/32A
- 500L belt drive air compressor
- Heavy duty 3-phase 7.5hp motor
- 2-stage pump system
- Max 29.3cfm air delivery
- Max 145psi pressure
- Full cast cylinders
This Sealey 500L belt drive air compressor is a robust, heavy-duty model designed for professional workshops. With a powerful 3-phase 7.5hp motor, 2-stage pump system, and large 500-litre tank capacity, it provides high-performance air delivery for the most demanding applications.
Built to withstand heavy workloads
At the core of this compressor is a durable 2-stage pump featuring full cast iron cylinders capped by alloy heads. This improves heat dissipation, extending the pump's life even under constant heavy workloads. The robust build quality makes it ideal for professional workshops where an air compressor will be constantly used.
The 2-stage design also maximises performance, delivering an impressive maximum free air delivery of 22.6cfm or 830 litres per minute—over 50% more than a typical compressor designed for non-professional use. It also achieves a maximum pressure of 145psi, suitable for all common workshop tools and spray painting applications.
Optimised for efficient operation
Several design features help optimise efficiency and running costs. The 3-phase 7.5hp electric motor provides plenty of power while keeping energy costs lower than a single-phase model. The large 500-litre air tank enables longer continuous operation between refills.
Heavy-duty guards protect the belt drive system, ensuring a long service life. A specially designed flywheel forces air over the pump during operation for enhanced cooling. CE certification and full documentation ensure users' safe and efficient operation.
This Sealey electric air compressor is built to withstand constant professional workshop use while providing high-pressure air delivery thanks to its 2-stage pump and powerful motor. It's an efficient and reliable choice with an optimised design and heavy-duty components.
| Air Displacement cfm(L/min): | 29.3(830) |
| Maximum Free Air Delivery cfm(L/min): | 22.6(640) |
| Maximum Pressure: | 145psi(10bar) |
| Minimum Rated Supply: | 16A |
| Motor Output: | 7.5hp |
| Nett Weight: | 255kg |
| Oil Capacity: | 1.57L |
| Outlet: | 3/4BSP Female Tap |
| Phase: | 3ph |
| Receiver Capacity: | 500L |
| Size (W x D x H): | 2000 x 700 x 1230mm |
| Speed: | 1280rpm |
| Supply: | 415V/32A |
"
Two-Stage Pump System: The 2-stage pump maximises performance and efficiency compared to single-stage models, keeping running costs low.
7.5hp 3-Phase Motor: The heavy-duty 3-phase motor provides plenty of power for professional workshop use.
500L Capacity: Its large 500-litre capacity allows it to run for longer without stopping to refill the tank.
145psi Max Pressure: Achieves a high maximum pressure of 145psi, suitable for most heavy-duty applications.
Full Cast Cylinders: Robust full cast cylinders capped by an alloy head improve heat dissipation for a longer life.
Belt Drive System: The belt drive system is protected by heavy-duty guards to prevent damage.
Force Air Cooling: A specially designed flywheel forces air over the pump to aid cooling while in use.
CE Certified: Comes with full CE certification and documentation for safe operation.
