Ritelite 18mm Mini Sonde18mm

End fitting: Male M10 thread
Construction: ABS Plastic / Stainless Steel
Location depth up to 7 m
Weight: 65 g
Signal 32,768kHz
Battery: 2 x LR44 Alkaline Battery Life 8 hours
IP rating IP68
Temperature range -20°C to 55°

1Year Warranty

Call for advice0808 196 9388

Price for: CL/SONDE-18-33

£229.00 (ex VAT)£274.80 (inc VAT)

Ritelite 18mm Mini Sonde

The sleek and slim design of the Ritelite 18mm Mini Sonde means that it’s the ideal attachment to navigate narrow pipes, ducts, and bends while larger sondes would get jammed. Utility location, maintenance, and pipe tracing are significantly simplified by the compact profile of this mini sonde.

It transmits a 33kHz (32.768kHz) signal which can easily be detected by Cable Avoidance Tools (CAT) and Signal Generators (Genny) to locate the exact location of the mini sonde, up to 7 meters deep. Connect it to the Ritelite Cobra rodding systems and receive transmissions even through non-conductive systems such as plastic, clay, or concrete.

This mini sonde is constructed from high-impact ABS plastic and stainless steel to ensure that it can withstand demanding environments. It features an IP68 waterproof rating, meaning that it can be submerged in water, dirt, and silt. It can operate in temperatures ranging from -20°C to +55°C & still perform reliably.

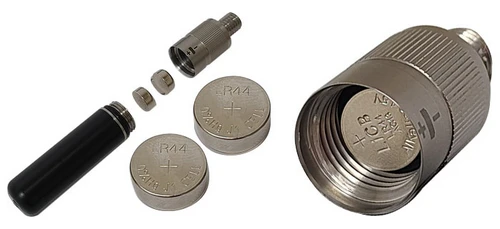

All it takes to power this mini sonde is two LR44 alkaline batteries, providing 8 to 10 hours of continuous runtime. This means you can use it all day on the site without it failing.

Features & Benefits: Ritelite 18mm Mini Sonde

Sleek Design: The compact 18mm profile means that it can navigate through ducts, pipes, and bends with an ease that larger sondes may struggle with.
Strong Transmission: Featuring a 33kHz signal that is picked up quickly by CAT and Genny locators during above-ground tracking.
Up to 7m Depth: Take operations to new depths with the locator picking up this transmission up to 7m deep.
Waterproof Rating: The heavy-duty, reliable construction ensures that no damage would be obtained from submersion into water, dirt, or silt.
Dependable Batteries: Even with continuous use, the 2 x LR44 batteries will last up to 8 to 10 hours.

Smaller Is Better

Underground procedures to locate obstructions or map routes can be challenging, especially if you don’t have the right equipment to perform the task successfully. The 18mm Mini Sonde offers a solution for those narrow ducts and pipelines where standard sondes will get stuck. The sleek profile of this mini sonde will erase all of these issues and navigate through these pathways seamlessly.

Reliable Frequency

Simplicity is in the name of this mini sonde; it uses the standard 32.768kHz signal to ensure that it’s compatible with the common locators, it can be traced in non-conductive lines, allows for precise location of blockages or collapses, and all at a maximum depth up to 7 meters from the surface.

Safe While Submerged

Underground procedures may lead to wet, dirty, and damp environments. Not all attachments may be able to handle these conditions. The mini sonde has an IP68 waterproof rating and is constructed with ABS plastic and stainless steel with seals that ensure that the moisture is kept out while it is submerged in water and mud.
