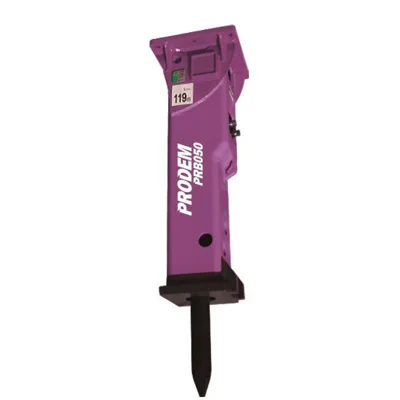

Prodem PRB050 Silenced Excavator Hydraulic Hammer
- Made for 3.5-8T excavators
- 700J max impact
- 550-1000 bpm
- 68mm diameter
Near-silent operation for urban demolition
This excavator hydraulic hammer features top tier sound suppression technology, featuring a fully enclosed housing, assuring the hammer operates at whisper-quiet levels. This makes Prodem hydraulic hammers perfect for noise-sensitive and residential areas, where noise regulations and community comfort are seen as priorities.
Two moving parts
The PRB050’s two-moving-part design, only the piston and valve, lowers the risk of mechanical failure by reducing the number of components that can wear out or break down. This streamlined design increases reliability and simplifies maintenance resulting in dependability and reduced downtime.
Optimised for maximum productivity
This excavator hammer attachments advanced hydraulic system optimises energy transfer and minimises power loss, providing efficient operation and maximum productivity on heavy-duty projects. By delivering consistent, high-performance power to the tool, the hammer achieves faster cycle times and higher breakout forces, allowing you to tackle demanding tasks with ease and efficiency.
Durable in tough environments
With a full box enclosure crafted from high-strength welded steel, premium heat-treated tool steel, and a hardened rock claw, the PRB050 hydraulic hammer offers wear resistance and long-term durability in even the toughest conditions. These heavy-duty components protect the hammer’s internal parts from damage and guarantee long-lasting performance.
| Model | Working Weight (kg) | Required Oil Flow (lpm) | *Operating Pressure (bar)* | Impact Energy (max) – Low Speed (joule) | Impact Energy (max) – High Speed (joule) | Impact Frequency – Low Speed (bpm) | Impact Frequency – High Speed (bpm) | Tool Diameter (mm) | Tool Diameter (inch) | Excavator Weight Class (t) |
| PRB008 | 75 | 12-22 | 100-130 | N/A | 110 | N/A | 750-1300 | 42 | 1.65 | 0.7-1.5 |
| PRB010 | 123 | 15-25 | 100-130 | N/A | 180 | N/A | 700-1200 | 45 | 1.80 | 0.7-3 |
| PRB030 | 149 | 20-35 | 100-130 | N/A | 300 | N/A | 550-1000 | 50 | 2.0 | 1.5-4.5 |
| PRB040 | 209 | 30-50 | 110-140 | N/A | 450 | N/A | 550-1000 | 58 | 2.3 | 2.5-6 |
| PRB050 | 294 | 35-65 | 130-170 | N/A | 700 | N/A | 550-1000 | 68 | 2.7 | 3.5-8 |
| PRB060 | 424 | 45-90 | 130-170 | N/A | 1000 | N/A | 520-1000 | 80 | 3.2 | 5-11 |
| PRB100 | 537 | 60-110 | 140-180 | N/A | 1350 | N/A | 500-1000 | 93 | 3.7 | 7-15 |
| PRB150 | 974 | 80-140 | 140-180 | 2500 | 2150 | 380-700 | 550-850 | 105 | 4.1 | 12-20 |
| PRB170 | 1270 | 110-170 | 160-180 | 2800 | 2200 | 350-600 | 550-750 | 117 | 4.6 | 14-24 |
| PRB200 | 1564 | 100-150 | 160-180 | 3500 | 2800 | 340-550 | 440-700 | 125 | 4.9 | 16-25 |
| PRB250 | 1662 | 130-180 | 160-180 | 4300 | 3200 | 330-500 | 430-650 | 135 | 5.3 | 20-30 |
| PRB300 | 2492 | 170-240 | 165-185 | 6100 | 4200 | 310-490 | 400-680 | 150 | 5.9 | 26-35 |
| PRB400 | 3100 | 200-280 | 165-185 | 7600 | 6000 | 330-450 | 420-600 | 165 | 6.5 | 32-45 |
| PRB500 | 4200 | 230-330 | 165-185 | 10400 | 7900 | 250-370 | 350-500 | 180 | 7.1 | 40-70 |
| PRB700 | 6700 | 320-420 | 165-185 | 13000 | 10000 | 280-370 | 370-480 | 205 | 8.07 | 60-110 |
| PRB1000 | 10070 | 410-530 | 165-185 | 17000 | 14000 | 260-340 | 360-470 | 245 | 9.65 | 85-140 |
Optimised for 3.5-8T excavators: 68mm tool diameter is perfectly matched for excavators in the 3.5 to 8-ton range.
Industry leading impact: With a maximum impact energy of 700 joules, the PRB050 delivers unmatched breaking power.
High-frequency impact range: The 550-1000 bpm impact frequency range allows for high-speed operation.
Advanced sound suppression: Cutting-edge noise-reducing materials, and a fully enclosed housing minimise sound levels.
Durable enclosed housing: The full box enclosure is crafted from high-strength welded steel, providing superior protection for internal components and ensuring long-term reliability in demanding conditions.
Premium tool: The hammer’s working tool is made from high-quality, heat-treated steel.
Hardened rock claw: Designed to withstand extreme wear and tear, providing extended service life in tough rock breaking applications.
