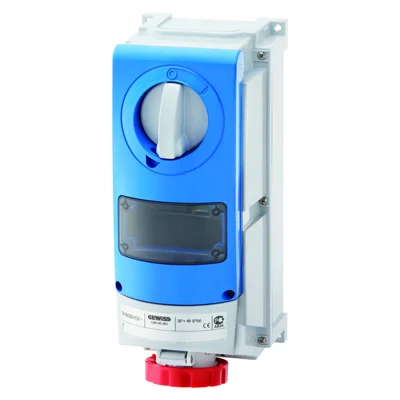

Gewiss Heavy Duty Interlocked Socket Outlet - Vertical 415V
- Heavy-duty interlocked socket outlet
- 3P+N+E, 32A, 346-415V, 50/60Hz
- IP66 protection, IK10+ impact resistance
- Vertical, fixed, with bottom
- For mounting modular devices (6M)
- Rotary switch mechanical interlock
Rugged Construction for Demanding Environments
Part of the IB Range, this heavy-duty interlocked socket outlet is a testament to robust performance in demanding industrial and commercial sectors. Its sturdy construction ensures resistance to harsh chemical and atmospheric agents, while its high IP66 protection rating and IK10+ impact resistance make it a perfect fit for challenging environments with critical atmospheric, chemical, and mechanical conditions. This durability guarantees reliable operation and longevity, even in the most unforgiving settings.
Compliance with International Standards and Reliable Performance
This industrial socket outlet conforms to the IEC 60309 Standard, guaranteeing international compatibility and strict adherence to safety regulations. The 80°C thermo-pressure with ball connection ensures a secure and dependable connection, even in the most demanding conditions, providing peace of mind for users in challenging environments.
Versatile Locking Mechanism for Individual or Group Applications
The GW66993 socket outlet adapts to the diverse professional requirements of installers and panel builders. Its rotary switch mechanical interlock is a versatile feature, allowing for individual or group applications on modular bases. This flexibility and adaptability to various installation needs make it a valuable asset in a wide range of industrial and commercial applications.
Enhanced Safety Features and Easy Identification
This vertical socket outlet boasts a glow wire test rating of 850°C, ensuring fire resistance and minimising potential hazards, creating a safer working environment. The Electrocod 2222 marking provides additional information for correct installation and maintenance, ensuring that the outlet is used and serviced appropriately, prolonging its lifespan and maintaining optimal performance. The eye-catching red colour facilitates easy visual identification in industrial settings, helping to prevent errors and enhance overall safety.
| TypeVertical | Thermo-pressure with ball80 °C | Impact resistance at -20 °C20 J | IP degreeIP66 | No. of poles3P+N+E | Mechanical resistance> IK10 | Frequency50/60 Hz | Operating temperature-25 +40 °C | ProtectionSuitable for modular apps. (6M) | With back-mounting boxYes | Electrocod2222 | Glow wire test850 °C | ColourRed | Rated current (A)32 | Reference h6 | Rated voltage380-415 V | Type of useHeavy duty | Ware Number85366990 |
|---|
3P+N+E, 32A, 346-415V: Suitable for heavy-duty industrial applications.
IP66 Protection: Withstands dust and powerful water jets.
IK10+ Impact Resistance: Ensures durability in harsh environments.
Rotary Switch Mechanical Interlock: Enables individual or group applications.
Suitable for Modular Devices (6M): Expands functionality and adaptability.
80°C Thermo-Pressure with Ball: Provides secure and reliable connections.
850°C Glow Wire Test: Offers fire resistance for enhanced safety.
Red Colour: Facilitates easy visual identification in industrial settings.
