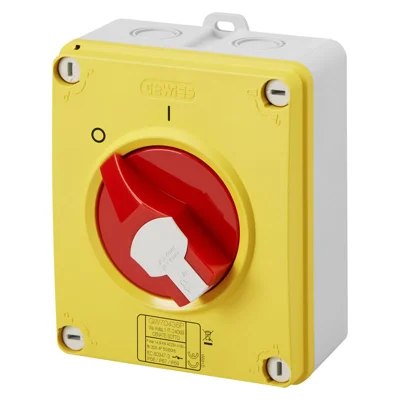

Gewiss 70 RT HP Rotary Isolator Switch
- Rotary isolator switch, emergency
- 32A 4P, insulating material box
- Lockable red knob, IP66/67/69
- IK08, -25°C to +60°C
- 32A in AC21A/AC22A/AC23A (415V)
- Max. 2 auxiliary contacts
Emergency Isolation Solution for Various Applications
The Gewiss 70 RT HP rotary isolator switch is engineered to deliver safe and dependable emergency isolation in residential, tertiary, and industrial settings. This 32A 4P switch is enclosed in a sturdy insulating material box, which protects against dust, water, and high-pressure cleaning, as evidenced by its IP66/67/69 rating. The lockable red knob facilitates easy identification and prevents unauthorised operation, making it well-suited for emergencies.
Adaptable Installation Configurations
Compatible with many applications, this rotary isolator switch offers versatile installation options. The box features 2 x M20/25 and 2 x M20/25 holes entry, allowing for flexible wiring configurations. The switch can accommodate 1-10 mm² wires, and the lid is secured with 4 insulated 1/4 turn screws, ensuring quick and easy access for maintenance or installation.
Robust Design for Challenging Environments
With an IK08 mechanical resistance rating, this rotary isolator switch can withstand impacts in industrial environments. It is designed to operate in temperatures ranging from -25°C to +60°C, making it suitable for use in various climate conditions. The insulating material box provides excellent electrical insulation, ensuring safe operation and minimising the risk of electrical hazards.
Efficient Switching Performance
The Gwiss GW70436P offers efficient switching capabilities, with a rated current of 32A in AC21A, AC22A, and AC23A at 415V. This allows the switch to handle a wide range of loads, from resistive to highly inductive, making it suitable for various applications. The switch can also accommodate up to 2 auxiliary contacts (1 per side), enabling additional control and monitoring functions.
| Circuit breakerRotary isolator | VersionBox | MaterialInsulation | TypeFor emergency | Rated current (A)32 | No. of poles4P | Knob colourRed | LockableYES (max. 3 locks in OFF) | IP degreeIP66/IP67/IP69 | Mechanical resistanceIK08 | Ambient temperature-25 +60 °C | Lid screws (no. and type)4 insul. 1/4 turn | Current in AC21A (415V)32 | Holes entry2 x M20/25 + 2 x M20/25 | Current in AC22A (415V)32 | Type of accessoryMax. 2 auxiliary contacts (1 per side) | Current in AC23A (415V)32 | Cable section1-10 mm² | Ware Number85363030 |
|---|
IP66/67/69 protection: Ensures resistance against dust, water, and high-pressure cleaning
Lockable red knob: Prevents unauthorised operation and allows easy identification in emergencies
Insulating material box: Provides excellent electrical insulation and reduces the risk of electrical hazards
Versatile installation options: Compatible with a wide range of applications, thanks to flexible wiring configurations
IK08 mechanical resistance: Withstands impacts in industrial environments, ensuring durability
Wide operating temperature range: Suitable for use in various climate conditions, from -25°C to +60°C
High-performance switching capabilities: Handles a wide range of loads, from resistive to highly inductive, with a rated current of 32A at 415V
