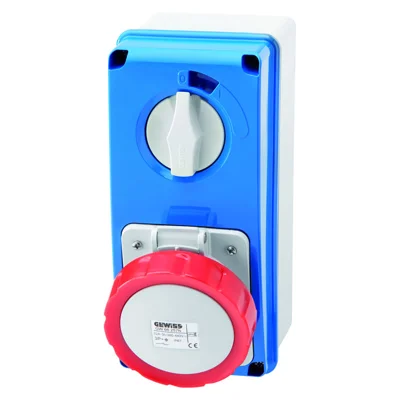

Gewiss 32A Interlocked Socket Outlet - Vertical 415V
- Interlocked socket outlet, 3P+N+E
- 32A, 346-415V, 50/60Hz
- IP67 protection, IK08 resistance
- Vertical, fixed, without fuse-holder
- -25 to +40°C operating temperature
- Thermo-pressure with ball connection
Robust Construction for Demanding Environments
Boasting an IP67 protection rating, the GW66220N vertical interlocked socket outlet provides exceptional resistance against dust and water ingress, making it well-suited for use in challenging industrial environments. The IK08 mechanical resistance rating further ensures the outlet's durability by offering protection against external impacts. The thermo-pressure with ball connection guarantees a secure and reliable connection, providing stable performance even in demanding conditions.
Dependable Power Distribution for Industrial Settings
As part of the IB Range, this vertical socket outlet is specifically designed for reliable power distribution in industrial and commercial applications. Equipped with a locking device, this socket caters to the diverse professional requirements of installers and panel builders. The mechanical interlock, which incorporates a circuit breaker, allows plug connection and disconnection only in the open position. At the same time, the switch can close only when the plug is inserted, ensuring a secure and controlled operation.
Enhanced Safety Features and Simple Identification
The Gwiss socket outlet prioritises safety. Its glow wire test rating of 850°C (IB socket) and 650°C (bottom) ensures fire resistance and minimises potential hazards. The vertical socket outlet's vibrant red colour facilitates easy visual identification in industrial settings, helping to prevent errors and improve overall safety. The Electrocod 2222 marking provides additional information for correct installation and maintenance, ensuring that the outlet is used and serviced appropriately.
International Compliance and Versatile Installation Options
Conforming to the IEC 309 Standard, this 32A socket outlet ensures international compatibility and adherence to strict safety regulations. The socket outlet's versatile design allows for assembly in back-mounting and flush-mounting boxes, as well as integration with boards of the 68 Q-DIN and Q-MC ranges, providing installers with a high degree of application flexibility and adaptability.
| TypeVertical | Thermo-pressure with ball125 °C (IB socket) - 80 °C (bottom) | IP degreeIP67 | No. of poles3P+N+E | Mechanical resistanceIK08 | Frequency50/60 Hz | Operating temperature-25 +40 °C | ProtectionNO (SBF) | With back-mounting boxYes | Electrocod2222 | Glow wire test850 °C (IB socket) - 650 °C (bottom) | ColourRed | IB socket outlet rated current (In)32 A | Rated current (A)32 | Reference h6 | Rated voltage380 - 415 V | Ware Number85366990 |
|---|
3P+N+E, 32A, 346-415V: Suitable for high-power industrial applications.
IP67 Protection: Resistant to dust and water ingress.
IK08 Mechanical Resistance: Withstands external impacts for durability.
Thermo-Pressure with Ball Connection: Ensures secure and reliable connectivity.
-25 to +40°C Operating Temperature: Versatile usage in various environments.
IEC 309 Standard Conformity: International compatibility and safety.
Versatile Installation Options: Back-mounting, flush-mounting, and board assembly.
Red Colour: Easy visual identification in industrial settings.
