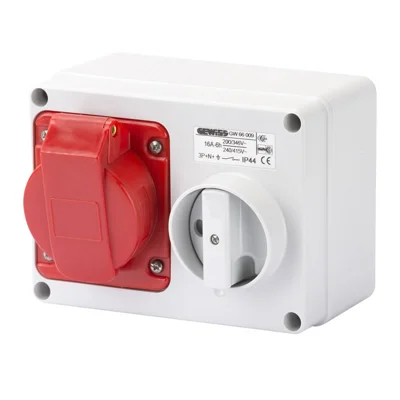

Gewiss 16A Interlocked Socket Outlet - Horizontal 415V
- IP44 protection, IK08 mechanical resistance
- With back-mounting box, red colour
- Horizontal type, 50/60Hz frequency
- 3P+N+E 16A 346-415V interlocked socket-outlet-25 to
- +40°C operating temperature
Durability and Resistance in Challenging Environments
The Gewiss 16A interlocked socket outlet from the IB Range is engineered to withstand the rigours of industrial and commercial environments. With an IP44 protection rating, which means it is protected against solid objects larger than 1 mm and water splashes from any direction, this horizontal socket outlet ensures consistent performance even in harsh conditions. The IK08 mechanical resistance rating further demonstrates the socket-outlet's robustness and ability to endure impacts, making it a reliable choice for demanding settings.
Adaptable Installation Options for Diverse Setups
The IB Range socket outlets offer more than just versatility, they offer you the option to adapt to various installation setups. They can be assembled in back-mounting and flush-mounting boxes and boards of the 68 Q-DIN and Q-MC ranges. This flexibility makes the Gwiss horizontal socket outlet a practical choice for many professional applications. The included back-mounting box streamlines installation, saving valuable time and effort.
Dependable Power Distribution for Industrial & Commercial Settings
When it comes to power distribution, the Gwiss socket outlet is one that you can trust. It's designed to meet the IEC 309 standard, making it a dependable solution for power distribution in industrial and commercial environments. But it's not just about meeting standards, it's about ensuring safety. That's why it features a mechanical interlock with a circuit breaker, ensuring that the plug can only be connected or disconnected when the switch is open. The switch can only be closed when the plug is fully inserted. This safety feature is a testament to a commitment to preventing accidents and enhancing overall electrical safety in the workplace, giving users the confidence they need in their installations.
| TypeHorizontal | Thermo-pressure with ball125 °C (active parts) - 80 °C (passive parts) | IP degreeIP44 | No. of poles3P+N+E | Mechanical resistanceIK08 | Frequency50/60 Hz | Operating temperature-25 +40 °C | ProtectionNO (SBF) | With back-mounting boxYes | Electrocod2220 | Glow wire test850 °C (active parts) - 650 °C (passive parts) | ColourRed | Rated current (A)16 | Reference h6 | Rated voltage380-415 V | Ware Number85366990 |
|---|
Wide operating temperature range: Ensures reliable functioning in diverse environments, with a temperature range from -25°C to +40°C.
Glow wire tested: Enhances safety by ensuring the socket-outlet can withstand high temperatures, with active parts tested at 850°C and passive parts at 650°C.
IK08 mechanical resistance: Makes the socket-outlet suitable for demanding settings by offering durability and the ability to withstand impacts.
High application versatility: The ability to assemble in back-mounting and flush-mounting boxes and boards of the 68 Q-DIN and Q-MC ranges facilitates easy integration into various installation setups.
Mechanical interlock with circuit breaker: Prevents accidents and enhances safety by ensuring the plug can only be connected or disconnected when the switch is open.
Thermo-pressure with ball: Ensures consistent performance and reliability over time, even under high-stress conditions.
IEC 309 standard compliance: This provides a reliable and safe solution that adheres to international standards and meets the requirements for industrial power distribution.
IP44 protection rating: This rating ensures reliable performance in industrial and commercial environments by protecting the socket outlet against solid objects and water splashes.
