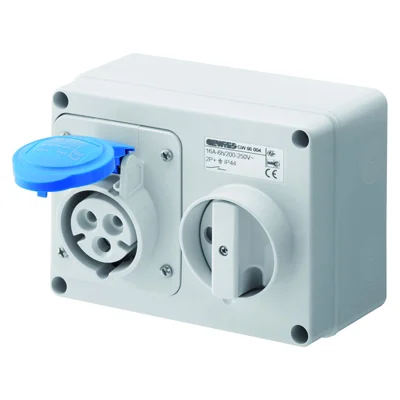

Gewiss 16A Interlocked Socket Outlet - Horizontal 250V
- 2P+E 16A 200-250V interlocked socket-outlet
- IP44 protection, IK08 mechanical resistance
- Horizontal type, 50/60Hz frequency
- -25 to +40°C operating temperature
- With back-mounting box, blue colour
Efficient Power Distribution for Industrial & Commercial Settings
The Gewiss Interlocked Horizontal Socket Outlet from the IB Range is not just another power distribution solution for industrial and commercial environments. It's a robust, uniquely designed socket outlet that adheres to the IEC 309 standard. Its standout features set it apart: a mechanical interlock for enhanced safety and a wide range of mounting options for versatility. These features ensure the socket-outlet's safe and reliable performance in demanding applications, making it a superior choice.
Enhanced Safety with Mechanical Interlock
The mechanical interlock is not just a feature, it's a crucial safety measure of this 16A socket outlet. It incorporates a circuit breaker that prevents the plug from being connected or disconnected when the switch is closed. This design ensures that the switch can only be closed when the plug is fully inserted, significantly reducing the risk of electrical accidents and injuries in the workplace. With this socket outlet, safety is not a concern, it's a guarantee.
Built to Withstand Challenging Environments
When handling demanding industrial environments, the interlocked socket outlet is more than capable. With an IP44 protection rating, it can handle solid objects and water splashes, providing reliable performance even in challenging conditions. And it doesn't stop there. The socket-outlet also boasts an IK08 mechanical resistance rating, demonstrating its durability and ability to withstand impacts. With this horizontal socket, you can be confident it will withstand the toughest conditions.
Versatile Mounting Options for Diverse Applications
The IB Range socket outlets offer a high level of application versatility. They can be assembled in back-mounting and flush-mounting boxes and boards of the 68 Q-DIN and Q-MC ranges. This flexibility empowers installers and panel builders to integrate the socket-outlet into various installation setups, making it suitable for various industrial and commercial applications. By detailing these mounting options, the reader can better visualise how the product can be integrated into their installation setups.
| Type | Horizontal |
|---|---|
| Thermo-pressure with ball | 125 °C (active parts) - 80 °C (passive parts) |
| IP degree | IP44 |
| No. of poles | 2P+E |
| Mechanical resistance | IK08 |
| Frequency | 50/60 Hz |
| Operating temperature | -25 +40 °C |
| Protection | NO (SBF) |
| With back-mounting box | Yes |
| Electrocod | 2220 |
| Glow wire test | 850 °C (active parts) - 650 °C (passive parts) |
| Colour | Blue |
| Rated current (A) | 16 |
| Reference h | 6 |
| Rated voltage | 200-250 V |
| Ware Number | 85366990 |
Glow wire tested: This reduces the risk of fire hazards in industrial settings by ensuring the socket outlet can withstand high temperatures.
Wide range of mounting options: It is easy to integrate into various installation setups, making it suitable for a diverse range of industrial and commercial applications.
Thermo-pressure with ball: Maintains consistent performance and reliability over time, even under high-stress conditions, ensuring dependable operation.
IEC 309 standard compliant: Meets the requirements for industrial power distribution, providing a reliable and safe solution that adheres to international standards.
IK08 mechanical resistance: It offers durability and the ability to withstand impacts, making it ideal for demanding industrial environments.
IP44 protection rating: This rating safeguards the socket outlet against solid objects and water splashes, ensuring reliable performance in challenging conditions.
Mechanical interlock with circuit breaker: Minimises the risk of electrical accidents and injuries by preventing the plug from being connected or disconnected when the switch is closed.
