Gewiss GW66532 Vertical Interlocked Socket Outlet
- IEC 309 standard compliant
- IP66 ingress protection
- 63A 380-415V 3-phase
- Vertical interlocked socket
- Heavy-duty construction
- No fuse holder base

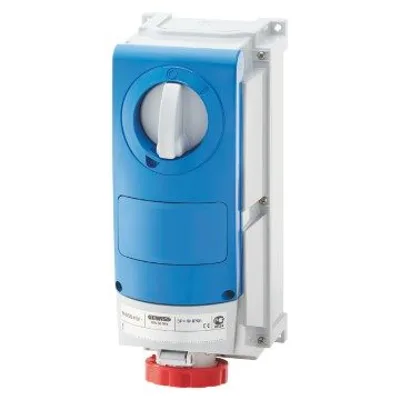

The Gewiss vertical fixed interlocked socket outlet is an industrial-grade power connection designed for heavy-duty applications in commercial and industrial settings. This robust socket provides a versatile, high-capacity power distribution solution.
Rugged, weatherproof construction for heavy industrial use
Built to withstand challenging industrial environments, this 63A 380-415V 3-phase vertical socket has an IP66 ingress protection rating, making it dust-tight and able to withstand powerful water jets. Its robust interlocked construction prevents disconnection while live, enabling safe, dependable power connections. The heavy-duty socket housing and contacts are engineered for prolonged use under intense operational conditions.
Advanced safety features for compliance and convenience
This fixed vertical outlet includes various safety and compliance features for industrial settings. An integrated socket interlock system prevents the power from being disconnected while live, enhancing safety. This socket conforms to IEC 309 standards for quality and performance. Its 63A capacity provides ample power for running industrial machinery and equipment. The vertical orientation saves space while allowing for neat, orderly installation. For convenience, it comes without a fuse holder base.
Overall, this interlocked socket outlet delivers industrial-grade power distribution, with advanced safety features, rugged IP66-rated construction and high 63A capacity in a vertical design ideal for heavy-duty industrial applications.
| TypeVertical | Thermo-pressure with ball80 °C | Impact resistance at -20 °C20 J | IP degreeIP66 | No. of poles3P+N+E | Mechanical resistance> IK10 | Frequency50/60 Hz | Operating temperature-25 +40 °C | ProtectionNO (SBF) | With back-mounting boxYes | Electrocod2222 | Glow wire test850 °C | ColourRed | Rated current (A)63 | Reference h6 | Rated voltage380-415 V | Type of useHeavy duty | Ware Number85366990 |
|---|
High Capacity: Provides 63A of power to operate industrial machinery and equipment.
Interlock System: Prevents disconnection while live for enhanced safety.
IP66 Rating: Withstands dust ingress and direct high-pressure water jets, enabling use in harsh environments.
IEC 309 Compliant: Adheres to international standards for quality and performance.
Vertical Design: Saves space and allows for orderly, neat installation.
Heavy Duty Construction: Durable housing and contacts engineered for prolonged use under intense industrial conditions.
