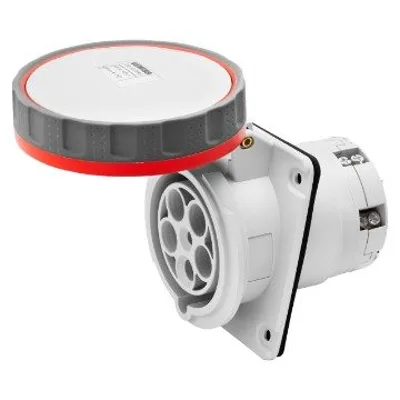

Gewiss GW63254H 10° Angled Flush Mounting Socket
- 10° angled flush-mounting
- IP66/IP67 protection rating
- 63A, 346-415V, 50/60Hz
- Mantle terminal wiring
- Part of IEC 309 HP range
The Gewiss angled flush mounting socket is an industrial socket outlet that offers robust ingress protection and high amperage in a versatile mounting configuration. Part of the extensive IEC 309 HP range, this 63A socket provides a durable and reliable solution for harsh environments.
Unrivalled protection from the elements
With an IP66/IP67 ingress protection rating, the 10° angled socket outlet is optimised for wet environments. The angled flush mounted design allows for secure wall fitting while providing protection against dust and water. This makes it suitable for demanding indoor and outdoor applications that require an angled socket outlet with serious environmental sealing. The red thermoplastic construction also ensures high resistance to impact, corrosion and ageing.
Power and practicality
In addition to robust ingress protection, this flush mounting socket provides 63A service at 346-415V with a frequency of 50/60Hz. The heavy-duty amperage and voltage make it ideal for the power demands of industrial equipment and tools. It uses a 10 degree angled flush mounted configuration to conveniently position cables and plugs. The mantle terminal wiring allows simple and secure indirect connections, offering the proven safety and performance that customers trust.
| Colour | Red |
|---|---|
| Rated current (A) | 63 |
| IP degree | IP66/IP67 |
| No. of poles | 3P+N+E |
| Mechanical resistance | IK09 |
| Reference h | 6 |
| Flange dimensions (mm) | 110x100 |
| Type | 10° angled flush-mounting socket-outlet |
| Rated voltage | 346 - 415 V |
| Frequency | 50/60 Hz |
| Terminal tightening capacity | 6-16mm² flexible cables - 6-25mm² rigid cables |
| Operating temperature | -25 +55 °C |
| Type of wiring | Mantle terminal |
| Type of material | Halogen-free in compliance with EN 60754-2 |
| Electrocod | 2211 |
| Glow wire test | 850 °C (active parts) - 650 °C (passive parts) |
| Total number of operations | > 2000 |
| Breaking capacity at 1.1 Un | 79 A |
| Insulation resistance | > 10 MΩ |
| Thermo-pressure with ball | 125 °C (active parts) - 80 °C (passive parts) |
| Ware Number | 85366990 |
Angled Flush-mounting: Allows convenient cable and plug positioning in a flush wall fitting.
IP66/IP67 Rating: Optimised for wet environments, protecting against dust and water.
63A Service: Provides heavy-duty amperage for powering industrial equipment.
346-415V Voltage: Wide voltage range covers common industrial power needs.
50/60Hz Frequency: Supports both 50Hz and 60Hz applications.
Mantle Terminal Wiring: Enables simple and secure indirect electrical connections.
Part of IEC 309 HP Range: Trusted industrial performance and safety.
