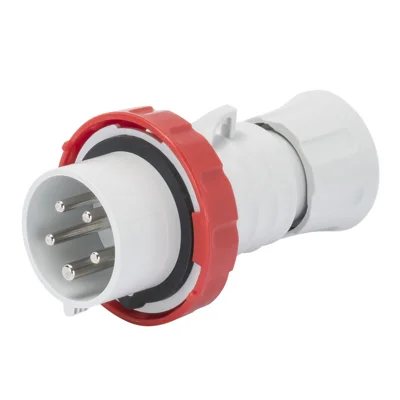

Gewiss 5 Pin 32A 415V Straight Plug
- IP66-IP69 protection rating
- 32A, 380-415V, 50/60Hz
- 3P+N+E, 6h position, Red
- Screw wiring terminals
- Halogen-free, Glow wire tested
- IK09 impact resistance
High-Performance Power Connection for Demanding Applications
This 5 pin 32A plug, part of the IEC 309 HP range, is engineered to provide a high-performance power connection for demanding applications. With a rated current of 32A, a voltage of 380-415V, and a frequency of 50/60Hz, this plug is suitable for heavy-duty equipment and machinery use. The vibrant red colour ensures easy identification and compatibility with specific installations.
Robust Construction for Challenging Environments
The Gewiss plug boasts an impressive IP66/IP67/IP68/IP69 degree of protection, enabling it to withstand dust ingress, powerful water jets, and even temporary or prolonged immersion in water. The IK09 rating showcases its high resistance to impact and mechanical stress, making it ideal for industrial and commercial settings where rough handling or accidental impact may occur.
Premium Materials for Enhanced Durability
The insulating parts of the plug are constructed from high-quality technopolymers of adequate thickness, guaranteeing excellent resistance to mechanical stress and chemical agents. The sleeves and pins are surface-treated with nickel-plating to protect against corrosion, oxidation, and abrasion. Stainless steel is used for the external metallic elements, while brass is used for the threaded metallic inserts in the 63-125A versions' body-grip coupling, further enhancing the plug's durability and safety.
Efficient Wiring and Installation
Featuring 3P+N+E poles and a 6h earthing contact position, this 5 pin outdoor plug ensures safe and efficient power distribution. It is suitable for 2.5-6mm² flexible cables and 2.5-10mm² rigid cables, with a cable clamp tightening capacity of 9.2-19.9 mm. The plug's operating temperature range of -25 to +55°C and user-friendly screw wiring terminals make it convenient for installation and maintenance in various environmental conditions.
| ColourRed | Rated current (A)32 | IP degreeIP66/IP67/IP68/IP69 | No. of poles3P+N+E | Mechanical resistanceIK09 | Reference h6 | TypeStraight plug | Rated voltage380 - 415 V | Frequency50/60 Hz | Terminal tightening capacity2.5-6mm² flexible cables - 2.5-10mm² rigid cables | Cable clamp tightening capacity9.2-19.9 mm | Operating temperature-25 +55 °C | Type of wiringWith screw | Type of materialHalogen-free in compliance with EN 60754-2 | Electrocod2230 | Glow wire test850 °C (active parts) - 650 °C (passive parts) | Total number of operations> 2000 | Permissible overload42 A | Breaking capacity at 1.1 Un40 A | Insulation resistance> 10 MΩ | Thermo-pressure with ball125 °C (active parts) - 80 °C (passive parts) | Ware Number85366990 |
|---|
Nickel-Plated Sleeves & Pins: Resistant to tarnishing, oxidation & abrasion, guaranteeing enduring performance.
Stainless Steel Exterior Components: Assures robustness & longevity, withstanding arduous conditions.
IK09 Impact Resistance: Apt for rough treatment & accidental impacts, ensuring sturdiness.
Halogen-Free & Glow Wire Tested: Augments security & diminishes environmental footprint, promoting sustainability.
IP66-IP69 Protection: Withstands particulates, water jets & immersion, making it appropriate for unforgiving environments.
3P+N+E, 6h Position, Red: Effortlessly identifiable & compatible with specific setups, ensuring proper integration.
32A, 380-415V, 50/60Hz: Optimal for medium-current applications, offering versatility.
Screw Wiring Terminals: User-friendly installation & servicing, simplifying setup and maintenance.
