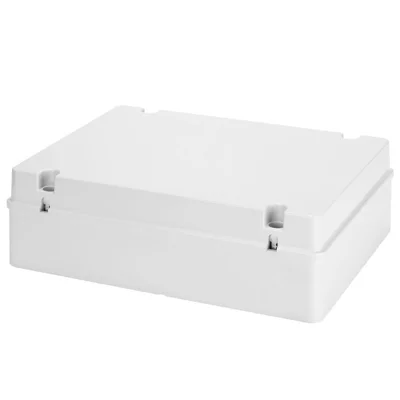

Gewiss 44 CE Electrical Junction Box - 380X300X120
- IP56 junction box with plain screwed lid
- Internal dimensions: 380x300x120 mm
- Smooth walls, grey RAL 7035
- Technopolymer GWPLAST 75 material
- IK08 mechanical resistance, halogen-free
High-performance Junction Box for Diverse Applications
The Gewiss electrical junction box with plain screwed lid from the 44 CE Range is a well-suited solution for ordinary junctions, particular uses, and industrial applications. Constructed from a technopolymer, this junction box provides durability and resistance to environmental factors. The smooth walls and grey colour allow it to blend seamlessly into various settings, making it a versatile choice for different installation requirements. With an operating temperature range of -25°C to +60°C, this junction box can be used in a wide variety of environments, both indoors and outdoors.
Reliable Protection Against Dust & Water Ingress
Boasting an IP56 protection rating, this Gewiss junction box effectively safeguards electrical connections against dust ingress and powerful water jets. The box's IK08 mechanical resistance ensures it can withstand impacts, making it suitable for use in demanding environments. Halogen-free material, which complies with EN 60754-2, adds an extra layer of safety by reducing the risk of toxic gas emissions in the event of a fire. The outdoor junction box also features a glow wire test rating of 650°C, demonstrating its ability to withstand high temperatures and maintain its structural integrity.
Spacious Interior & Straightforward Installation Process
The outdoor electrical junction box features internal dimensions of 380x300x120 mm, providing ample space for wiring and components. The plain screwed lid, which is secured by 4 insulated sealable hinged lid screws, allows for easy access during maintenance and modifications. These screws have a recommended tightening torque of 1.8 Newton/meter, ensuring a secure and reliable connection. The box can accommodate holes up to 48 mm in diameter, offering flexibility for cable entry and exit points and facilitating a straightforward installation process. The smooth walls of the junction box contribute to its sleek appearance and make it easier to clean and maintain.
| Insulation class | II (according to IEC 61140 standards) |
|---|---|
| Colour | Grey RAL 7035 |
| IP degree | IP56 |
| Material | Technopolymer GWPLAST 75 |
| Mechanical resistance | IK08 |
| Internal dim. LxHxD (mm) | 380x300x120 |
| Max Ø holes possible | 48 mm |
| Lid screws (no. and type) | 4 insul. sealable hinged |
| Application | Ordinary junctions |
| Glow Wire Test | 650 °C |
| Lid | Plain screwed |
| Operating temperature | -25 +60 °C |
| Type of material | Halogen-free in compliance with EN 60754-2 |
| Electrocod | 02211 |
| Thermo-pressure with ball | 85 °C |
| Torque screws tightening | 1.8 Newton/meter |
| Walls | Smooth |
| Accessories for insulation restoring | GW44621, GW44623 |
| Ware Number | 85381000 |
Halogen-free construction: Provides an added layer of safety by reducing the risk of toxic gas emissions in case of fire.
Ample internal space: Facilitates easy installation and maintenance by accommodating wiring and components with internal dimensions of 380x300x120 mm.
IK08 mechanical resistance: Ensures the junction box remains intact and functional in demanding settings by withstanding impacts.
Wide operating temperature range: The junction box is suitable for diverse environments by functioning reliably in temperatures ranging from -25°C to +60°C.
Technopolymer GWPLAST 75 material: Makes the junction box suitable for various applications by offering excellent durability and resistance to environmental factors.
Plain screwed lid: Allows for easy access and modification of electrical connections, secured by 4 insulated sealable hinged lid screws.
IP56 protection rating: Ensures reliable performance in challenging environments by safeguarding electrical connections against dust and powerful water jets.
Smooth walls and grey RAL 7035 colour: Enhances the overall appearance of the installation by enabling seamless integration into various settings.
