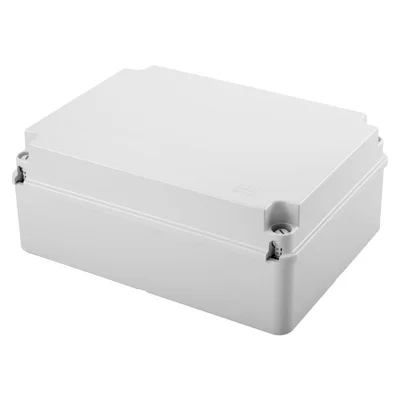

Gewiss 44 CE Electrical Junction Box - 300X220X120
- IP56 rated junction box
- Internal dimensions: 300x220x120 mm
- Smooth walls, grey RAL 7035
- Technopolymer GWPLAST 75 material
- IK08 mechanical resistance
- Halogen-free, self-extinguishing material
Rugged Technopolymer Construction
Crafted from high-performance GWPLAST 75 technopolymer, this electrical junction box offers a robust and reliable solution for protecting electrical connections. The material is halogen-free, which means it does not emit toxic or corrosive gases in the event of a fire, making it a safer choice for both people and equipment. Additionally, the technopolymer is self-extinguishing, further enhancing the fire safety of the installation.
Versatile Mounting Options
The Gewiss 44 CE electrical junction box is designed for surface mounting, allowing for easy installation in a variety of settings. The smooth walls facilitate quick and straightforward mounting and make maintaining a clean and tidy installation easier. The box can accommodate holes up to 48 mm in diameter and is compatible with a wide range of cable glands and conduits, providing flexibility in terms of cable management and organisation.
Secure Closure and Tamper Protection
The plain screwed lid of the outdoor electrical junction box is secured using four insulated, sealable, and hinged screws. This fastening method ensures a tight seal, preventing dust and water ingress and deterring unauthorised access to the electrical connections within. The hinged design of the screws allows for easy opening and closing of the lid during installation and maintenance without the risk of losing the screws.
Designed for Challenging Environments
With an operating temperature range of -25°C to +60°C, this waterproof junction box is suitable for use in a variety of indoor and outdoor applications. The wide temperature range ensures the box maintains its structural integrity and performance, even in extreme cold or heat. The Glow Wire Test rating of 650°C demonstrates the box's ability to withstand high temperatures, making it a reliable choice for environments where fire safety is a concern.
| Insulation classII (according to IEC 61140 standards) | ColourGrey RAL 7035 | IP degreeIP56 | MaterialTechnopolymer GWPLAST 75 | Mechanical resistanceIK08 | Internal dim. LxHxD (mm)300x220x120 | Max Ø holes possible48 mm | Lid screws (no. and type)4 insul. sealable hinged | ApplicationOrdinary junctions | Glow Wire Test650 °C | LidPlain screwed | Operating temperature-25 +60 °C | Type of materialHalogen-free in compliance with EN 60754-2 | Electrocod02211 | Thermo-pressure with ball85 °C | Torque screws tightening1.8 Newton/meter | WallsSmooth | Accessories for insulation restoringGW44621, GW44622 | Ware Number85381000 |
|---|
Halogen-free, self-extinguishing technopolymer: Enhances safety by not emitting toxic gases in the event of a fire
IP56 protection rating: Guards against dust ingress and powerful water jets, ensuring the integrity of electrical connections
Wide -25°C to +60°C operating temperature range: Allows for reliable performance in various indoor and outdoor environments
Smooth walls: Facilitates quick and easy installation and maintenance
Spacious 300x220x120 mm interior: Provides ample space for organising and accommodating electrical connections
IK08 impact resistance: Offers durability and the ability to withstand impacts, maintaining structural integrity
Plain screwed lid with secure, sealable screws: Ensures a tight seal and deters unauthorised access to electrical connections
