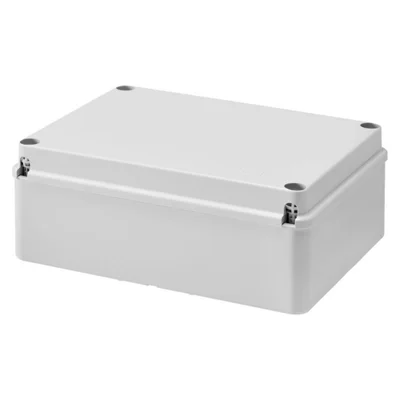

Gewiss 44 CE Electrical Junction Box - 240X190X90cm
- IP56 junction box, grey
- 240x190x90mm internal dimensions
- Technopolymer GWPLAST 75 material
- IK08 mechanical resistance
- Plain screwed lid
- Smooth walls, halogen-free
Compliance with International Standards and Versatile Application
Engineered to endure temperatures ranging from a frosty -25°C to a scorching 60°C, and boasting a glow wire test rating of 650°C, this outdoor electrical junction box showcases its resilience in the face of challenging conditions, maintaining its structural integrity. This junction box adheres to stringent safety regulations, ensuring compatibility and reliability. Its neutral grey RAL 7035 hue lends itself to seamless integration into diverse environments.
Secure and Effortless Installation
Featuring a sleek, plain screwed lid secured by four insulated, sealable hinged lid screws, the Gewiss GW44208 guarantees a tamper-proof closure. The lid screws can be tightened with a torque of 1.8 Newton/metre, providing a dependable seal. Its smooth walls facilitate effortless installation and maintenance, while the maximum hole diameter of 37mm offers flexibility for cable entry and routing, catering to diverse application requirements.
Robust Construction for Demanding Environments
Crafted from high-performance technopolymer GWPLAST 75, this waterproof junction box boasts exceptional durability and resilience against environmental factors. Its IP56 protection rating safeguards against dust ingress and powerful water jets, rendering it suitable for demanding environments. The IK08 mechanical resistance rating further fortifies its sturdiness, shielding the outdoor electrical junction box from external impacts. Manufactured with halogen-free materials, it mitigates the risk of toxic and corrosive gas emissions in the event of a fire.
Versatile and Practical Design
Designed for ordinary junctions and specialised or industrial applications, the 44 CE range junction box, with internal dimensions of 240x190x90mm, showcases its versatility. Its sleek and functional design, featuring a plain screwed lid and smooth walls, lends itself to a wide array of applications, seamlessly integrating into diverse environments while ensuring practicality and ease of use.
| Insulation class | II (according to IEC 61140 standards) |
|---|---|
| Colour | Grey RAL 7035 |
| IP degree | IP56 |
| Material | Technopolymer GWPLAST 75 |
| Mechanical resistance | IK08 |
| Internal dim. LxHxD (mm) | 240x190x90 |
| Max Ø holes possible | 37 mm |
| Lid screws (no. and type) | 4 insul. sealable hinged |
| Application | Ordinary junctions |
| Glow Wire Test | 650 °C |
| Lid | Plain screwed |
| Operating temperature | -25 +60 °C |
| Type of material | Halogen-free in compliance with EN 60754-2 |
| Electrocod | 02211 |
| Thermo-pressure with ball | 85 °C |
| Torque screws tightening | 1.8 Newton/meter |
| Walls | Smooth |
| Accessories for insulation restoring | GW44621, GW44622 |
| Ware Number | 85381000 |
IP56 Protection: Ensures a high level of protection against dust and powerful water jets.
Technopolymer GWPLAST 75 Material: Offers excellent durability and resistance to environmental factors.
IK08 Mechanical Resistance: Enhances durability and protects against external impacts.
Plain Screwed Lid with 4 Insulated Screws: Provides a secure and tamper-proof closure.
Smooth Walls: Allow for easy installation and maintenance.
Maximum Hole Diameter of 37mm: Offers flexibility for cable entry and routing.
Halogen-Free Material: Reduces the risk of toxic and corrosive gas emissions in the event of a fire.
Compliance with International Standards: Ensures compatibility and adherence to strict safety regulations.
