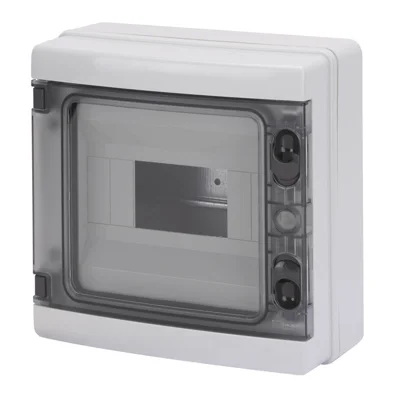

Gewiss 40 CD Terminal Block Enclosure
- Smooth walls IP65 enclosure
- Pre-arranged for terminal block
- 8 modules, smoked transparent door
- Reversible front and back panel
- Detachable door with 180° opening
- Halogen-free, IK09 mechanical resistance
Seamless Integration and Adaptability
The 40CD Series control units, with sizes ranging from 8 to 72 modules, seamlessly integrate with various types of furniture, ensuring aesthetic harmony. The 8-module enclosure boasts a smoked transparent door, which provides clear visibility while maintaining protection. The front and back panels are reversible, and the door is detachable, opening up to 180°. These features offer unparalleled flexibility and easy access during installation and maintenance, making this terminal block enclosure adaptable to diverse applications.
Sturdy Design and Superior Protection
The terminal block enclosure's IK09 mechanical resistance rating ensures its resilience against external impacts, guaranteeing long-lasting durability. The halogen-free material, which complies with EN 60754-2, contributes to a safer and more eco-friendly installation, prioritising both the well-being of users and the environment. Boasting an IP65 rating, this watertight enclosure delivers superior protection against dust and water, making it an ideal choice for challenging environments.
Streamlined Wiring and Efficient Installation
The enclosure comes pre-arranged for terminal blocks, enabling the creation of simple and tidy wiring. It accommodates both bipolar and unipolar terminal blocks, with ratings of 80 A and 125 A and screw wiring. This feature significantly streamlines the setup process, reducing the time required for installation and making the entire procedure more efficient. The well-organised wiring not only enhances the aesthetics of the installation but also facilitates easier maintenance and troubleshooting.
Adherence to Global Standards
The smooth wall enclosure complies with a range of international standards, including EN 60670-1 (CEI 23-48), IEC60670-24, and CEI 23-49. It provides an insulation voltage of 1000 V in accordance with EN 62208, applicable to both AC and DC systems. This ensures the terminal block enclosure's suitability for a wide array of applications across various industries. The enclosure's accessories, such as screwcaps (GW44623) or fixing brackets in resin (GW44621), assist in restoring insulation, further enhancing its versatility and reliability.
| Insulation classII (according to IEC 61140 standards) | ColourGrey RAL 7035 | Outer dim. LxHxD (mm)215x210x100 | IP degreeIP65 | Dispersible power (W)16 | Mechanical resistanceIK09 | Rated voltage400 V | Door colourSmoked Transparent | No. of modules EN 500228 | Rated current125 A | Glow Wire Test650 °C | Operating temperature-25 +60 °C | Type of materialHalogen-free in compliance with EN 60754-2 | Electrocod0321 | Thermo-pressure with ball70 °C | Accessories for insulation restoringScrewcaps (GW44623) or fixing brackets in resin (GW44621) | StandardEN 60670-1 (CEI 23-48) IEC60670-24 CEI 23-49 | Insulation voltage1000 V according to EN 62208 both in ac as well as in dc | Max. installable terminal blocks1 x 8 modules | Ware Number85381000 |
|---|
IP65 Watertight Rating: Protects against dust and water ingress.
Smoked Transparent Door: Offers visibility while maintaining protection.
Reversible Front and Back Panel: Provides flexibility during installation.
Detachable Door with 180° Opening: Allows easy access for maintenance.
Pre-arranged for Terminal Blocks: Simplifies wiring and reduces setup time.
Halogen-free Material: Contributes to a safer installation.
IK09 Mechanical Resistance: Ensures durability against external impacts.
Compliance with International Standards: Suitable for various applications.
