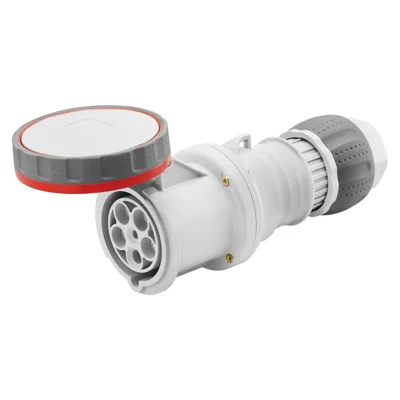

Gewiss 63A 415V 5 Pin Connector Plug
- Straight connector, 3P+N+E, 63A
- 346-415V, 50/60Hz, red, 6h
- IP66/IP67/IP68/IP69 protection
- IK09 mechanical resistance
- Mantle terminal for easy wiring
- Halogen-free, high-temperature resistant material
Robust Construction for Enhanced Durability
Engineered using high-quality technopolymers and insulating materials of substantial thickness, this 5 pin connector plug offers exceptional resistance to mechanical stress and chemical agents. The sleeves and pins are surface-treated with nickel-plating to ensure comprehensive protection against corrosion, oxidation, and abrasion, extending the connector's lifespan and maintaining optimal performance over time. The external metallic elements are crafted from stainless steel, while the threaded metallic inserts for body-grip coupling are made of brass, further reinforcing the connector's durability and reliability.
Compliance with International Standards and Safety
Rest assured, this Gewiss 63A connector plug is not only robust but also compliant with international standards and safety regulations. Using halogen-free material significantly reduces the risk of toxic and corrosive gas emissions in the event of a fire. With glow wire test ratings of 850°C for active parts and 650°C for passive parts, this connector demonstrates its exceptional fire resistance and safety, providing security and peace of mind for users in various industrial and commercial applications.
Advanced Protection for Demanding Environments
The IEC 309 HP range of plugs and socket-outlets, including this 5 pin connector plug, is not just designed, but engineered to provide superior protection in the most challenging applications. With IP66/IP67/IP68/IP69 ratings, this connector offers complete protection against dust, water, and high-pressure cleaning, ensuring reliable performance even in the harshest conditions. The IK09 mechanical resistance rating further enhances its durability, making it a reliable choice in industrial and commercial settings where heavy-duty performance is essential.
Efficient Wiring and Installation
The GW63053H connector plug is designed with your convenience in mind. It features a mantle terminal, simplifying wiring and installation processes. It can accommodate flexible cables ranging from 6-16mm² and rigid cables from 6-25mm², providing versatility for various application needs. The cable clamp tightening capacity of 19.9-37 mm ensures a secure and stable connection, while the operating temperature range of -25°C to +55°C allows for use in diverse environments, making it a reliable choice for a wide range of projects.
| ColourRed | Rated current (A)63 | IP degreeIP66/IP67/IP68/IP69 | No. of poles3P+N+E | Mechanical resistanceIK09 | Reference h6 | TypeStraight connector | Rated voltage346 - 415 V | Frequency50/60 Hz | Terminal tightening capacity6-16mm² flexible cables - 6-25mm² rigid cables | Cable clamp tightening capacity19.9-37 mm | Operating temperature-25 +55 °C | Type of wiringMantle terminal | Type of materialHalogen-free in compliance with EN 60754-2 | Electrocod2211 | Glow wire test850 °C (active parts) - 650 °C (passive parts) | Total number of operations> 2000 | Breaking capacity at 1.1 Un79 A | Insulation resistance> 10 MΩ | Thermo-pressure with ball125 °C (active parts) - 80 °C (passive parts) | Ware Number85366990 |
|---|
IP66/IP67/IP68/IP69 Protection: Ensures complete protection against dust, water, and high-pressure cleaning.
IK09 Mechanical Resistance: Provides enhanced durability for heavy-duty applications.
Nickel-plated sleeves and Pins: Offer full protection against corrosion, oxidation, and abrasion.
Stainless Steel and Brass Components: Enhance durability and reliability.
Mantle Terminal: Simplifies wiring and installation processes.
Accommodates Flexible and Rigid Cables: Provides versatility for various application needs.
Halogen-Free Material: Reduces the risk of toxic and corrosive gas emissions in the event of a fire.
Complies with International and European Standards: Ensures compatibility and adherence to strict safety regulations.
