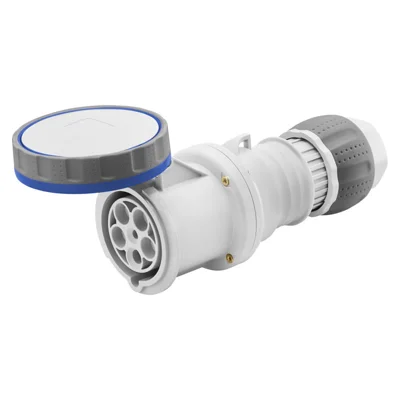

Gewiss 63A 250V 3 Pin Connector Plug
- Straight connector HP
- 2P+E, 63A, 200-250V, 50/60Hz
- IP66/IP67/IP68/IP69, IK09, Blue
- 6h reference, mantle terminal
- Halogen-free, 850°C/650°C glow wire
- 16.1-37mm cable clamp capacity
Reliable Power Connections in Demanding Environments
The Gewiss 3 pin connector plug is meticulously designed to meet and exceed international standards IEC 60309-1 and IEC 60309-2. This commitment to quality is evident in its high degree of protection, ranging from IP66 to IP69, which ensures resistance against dust, water, and high-pressure cleaning. The robust construction, incorporating high-quality technopolymers and stainless steel components, provides excellent mechanical and chemical resistance.
Adaptable Wiring Solutions and Enhanced Longevity
With a rating of 63A and operating at 200-250V 50/60Hz, the 2P+E connector offers a broad spectrum of wiring options. It can accommodate 6-16mm² flexible cables and 6-25mm² rigid cables, with a cable clamp tightening capacity of 16.1-37mm. The mantle terminal wiring system ensures secure and reliable connections. The sleeves and pins undergo surface treatment with nickel-plating to protect against corrosion, oxidation, and abrasion, enhancing the connector's durability.
Designed for Safety and Optimal Performance
The 3 pin connector plug's blue colour coding not only facilitates easy identification of the voltage rating but also enhances safety. With an IK09 mechanical resistance rating, this connector can withstand impacts in industrial environments, ensuring your operations are secure. The halogen-free materials used in its construction comply with EN 60754-2, minimising the risk of toxic gas emissions in the event of a fire. The glow wire test rating of 850°C for active parts and 650°C for passive parts demonstrates the connector's high-temperature resistance, further ensuring your safety.
Consistent Operation in Diverse Conditions
This straight connector is suitable for various applications and designed to perform in a wide range of temperatures, from -25°C to +55°C. Its insulation resistance is greater than 10 MΩ and breaking capacity is 79A at 1.1 Un, ensuring safe and reliable operation. The connector is built to withstand more than 2000 total operations, making it a durable choice for demanding industrial environments.
| ColourBlue | Rated current (A)63 | IP degreeIP66/IP67/IP68/IP69 | No. of poles2P+E | Mechanical resistanceIK09 | Reference h6 | TypeStraight connector | Rated voltage200 - 250 V | Frequency50/60 Hz | Terminal tightening capacity6-16mm² flexible cables - 6-25mm² rigid cables | Cable clamp tightening capacity16.1-37 mm | Operating temperature-25 +55 °C | Type of wiringMantle terminal | Type of materialHalogen-free in compliance with EN 60754-2 | Electrocod2211 | Glow wire test850 °C (active parts) - 650 °C (passive parts) | Total number of operations> 2000 | Breaking capacity at 1.1 Un79 A | Insulation resistance> 10 MΩ | Thermo-pressure with ball125 °C (active parts) - 80 °C (passive parts) | Ware Number85366990 |
|---|
IK09 mechanical resistance: Withstands impacts in industrial environments, ensuring durability
Wide operating temperature range: Adaptable to various applications, from -25°C to +55°C
IP66/IP67/IP68/IP69 protection: Safeguards against dust, water, and high-pressure cleaning
Nickel-plated sleeves and pins: Protects against corrosion, oxidation, and abrasion
Mantle terminal wiring: Accommodates 6-16mm² flexible and 6-25mm² rigid cables for versatile wiring
Halogen-free materials: Reduces the risk of toxic gas emissions in the event of a fire
Robust construction with high-quality materials: Offers excellent mechanical and chemical resistance
