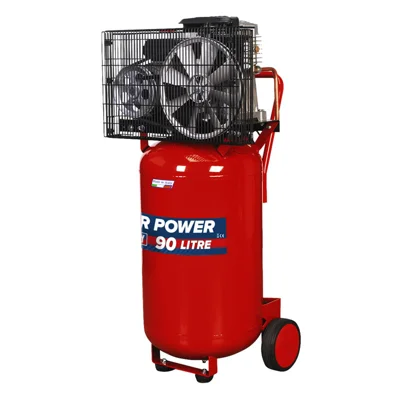

Sealey Air Power 90L Belt Drive Vertical Air Compressor
- 3hp motor
- 9.7cfm max air delivery
- 145psi max pressure
- 90L vertical tank
- 13.4cfm displacement
- Twin capacitors
The Sealey Air Power 90L vertical belt drive air compressor is designed to deliver high performance and durability for demanding professional workshop applications with limited space.
Powerful and reliable operation
With a genuine 3-horsepower motor, this vertical air compressor generates a maximum of 9.7 cubic feet per minute or 275 litres per minute of free air at up to 145psi or 10 bar pressure. This enables fast inflation times when used with high-demand pneumatic tools. The vertical 90-litre tank saves precious floor space without compromising performance. Twin capacitors and a centrifugal switch aid reliable start-up and allow operation on a standard 13 amp supply.
Advanced cooling and heavy-duty build
The heavy-duty pump utilises full cast iron cylinders capped with alloy heads that efficiently dissipate heat for improved durability. The pump is further cooled by a flywheel designed to force air over the pump during operation. Heavy-duty drive guards protect the belt and flywheel. With an air displacement of 13.4cfm or 380 litres per minute, this vertical compressor is suitable for continuous use in professional workshops where pneumatic tools are in constant demand.
In summary, this Sealey Air Compressor vertically oriented 90-litre belt drive compressor provides the powerful and reliable air delivery required in demanding professional environments without taking up excessive floor space. Advanced cooling features and robust construction ensure long-lasting performance from this high-quality air compressor.
| Air Displacement cfm(L/min): | 13.4(380) |
| Maximum Free Air Delivery cfm(L/min): | 9.7(275) |
| Maximum Pressure: | 145psi(10bar) |
| Minimum Rated Supply: | 13A |
| Motor Output: | 3hp |
| Nett Weight: | 65kg |
| Oil Capacity: | 0.45L |
| Outlet: | Quick Release Coupling |
| Phase: | 1ph |
| Receiver Capacity: | 90L |
| Size (W x D x H): | 525 x 495 x 1130mm |
| Speed: | 1636rpm |
| Supply: | 230V/13A |
3hp Motor: Provides powerful air delivery suitable for high-demand professional workshop applications.
145psi Max Pressure: Pneumatic tools generate up to 10 bar pressure for fast inflation times.
90L Vertical Tank: Saves floor space with a vertical orientation without compromising performance.
13.4cfm Displacement: High 380L/min displacement meets the air demands of continuous professional use.
Twin Capacitors: Aid reliable start-up on a standard 13amp electrical supply.
Alloy Heads: Capped cylinders dissipate heat efficiently for improved pump durability.
Flywheel Cooling: Forces air over the pump during operation to prevent overheating.
