Hinowa TP1600 Tracked Pallet Truck
- 1600kg Load Capacity
- 1775mm Lifting Height
- Hydraulic Track Widening
- Transparent Protection Shield
- Second Speed Configuration
- Automatic Tilt Control

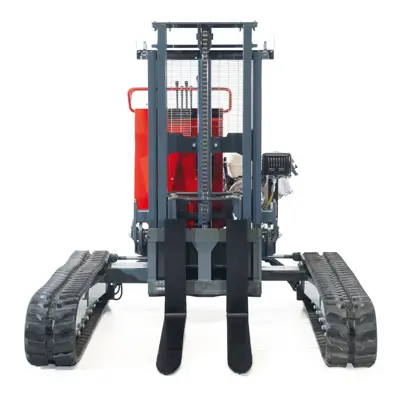

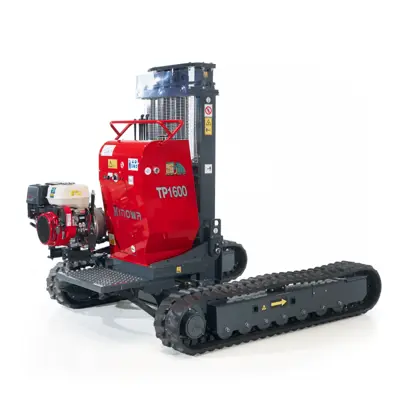

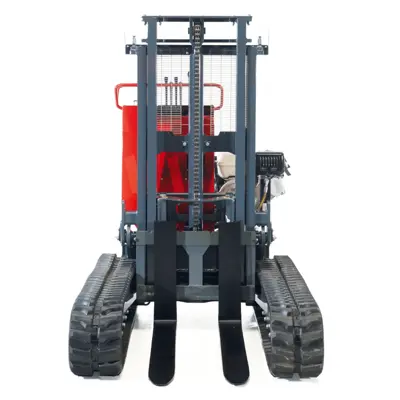

Hinowa TP1600 Tracked Pallet Truck
Versatile & heavy-duty load-lifting system
The Hinowa TP1600 Tracked Pallet Truck is developed with a load-lifting system to heights up to 1775mm on all types of terrain. It is the ideal solution for lifting and moving pallets up to 1.6 tonnes safely and efficiently. The tracked pallet truck is suitable for a wide range of applications, including construction, renovation, gardening, landscaping, agricultural work, safe storage and more.
To reinforce operator safety, the TP1600 is equipped with a transparent protection shield to prevent injury to upper limbs, plus tilt control which automatically switches off the engine if the truck is on a slope over 3° with the forks raised. The system for second speed configuration during transportation facilitates self-adjustment when the forks are raised.
The hydraulic track is designed to widen and adapt to any type of transport or terrain. The carriage widening function from 1240mm to 1800mm helps to save space during transportation. The tracks feature greased width adjusters up to 250mm, plus five rollers per side to facilitate operation on particularly challenging terrain.
| Motor: | Honda GX390 |
| Pistons and displacement: | single‑cylinder 389 cc |
| Max gross power: | 11,7 HP ‑ 8,7 kW @ 3600 rpm |
| Starting: | electric |
| Max. inclination: | 20° (36,4%) |

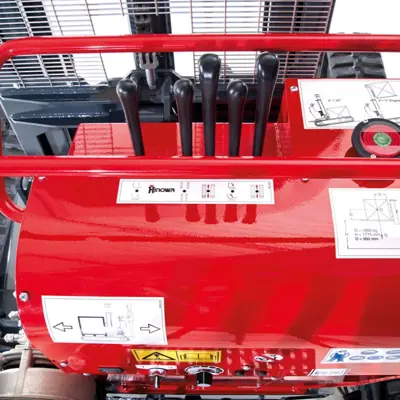

| Type distributor: | mechanical |
| Hydraulic pumps: number and type: | n° 3 gear pumps |
| Track tensioner: | grease |
| Track width: | 250 mm |
| Rollers per side: | 5 |
| Translation speed: | 1.5 ‑ 2.2 km/h |
| Variable width undercarriages as std.: | 1240 - 1800 mm |
| Capacity: | 1600 kg |
| Ground pressure: | 0.38 kg/cm2 |
| Operating weight: | 1330 kg |

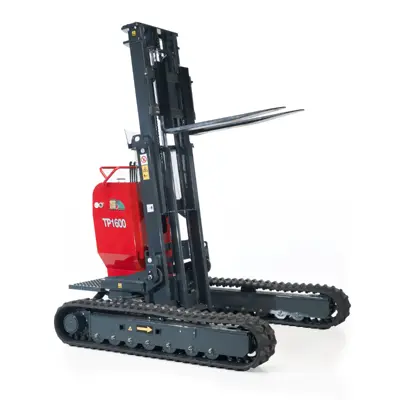

Versatile Load-lifting System: The TP1600 is designed to lift to heights of up to 1775mm on all types of terrain.
Hydraulic Track Widening: Featuring width adjusters up to 250mm, designed to adapt to any type of transport and terrain.
Automatic Tilt Control: Enables the pallet truck to automatically switch off the engine if the truck is on a slope over 3° with the forks raised.
Second Speed Configuration: System for second speed configuration during transportation and self-adjustment when the forks are raised.
Transparent Protection Shield: Featuring a robust protection shield to prevent injury to upper limbs whilst working.
Five Rollers Per Side: Facilitate operation on particularly challenging terrain.
