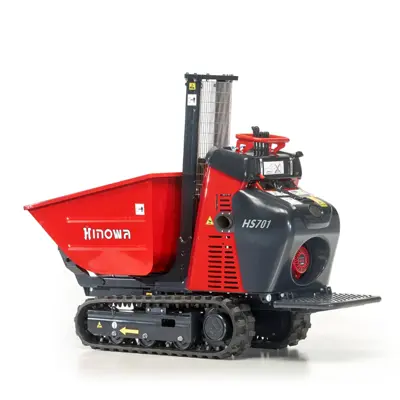

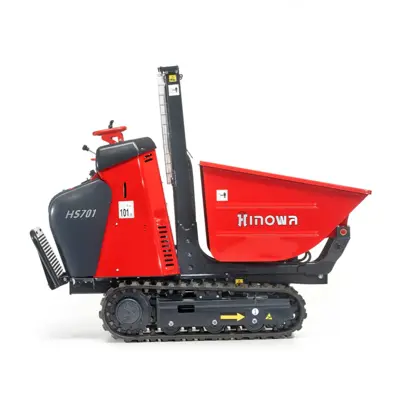

Hinowa HS701 High-Tip Mini Dumper
- 550kg Skip Capacity
- 1355mm Dumping Height
- Petrol & Diesel Engine Available
- Hydraulic Transmission
- Adjustable Undercarriage
- Patented High-Tipping System
Hinowa HS701 High-Tip Mini Dumper
Heavy-Duty. High Performance. Exceptionally Efficient.
Designed to guarantee rapid unloading of materials, the Hinowa HS701 is an efficient mini dumper with a construction site and high-tip skip. This compact model, with a 550kg load capacity, makes light work of shifting any kind of material. The high-tip unloading system with vertical guides means that a single operator can independently unload from a height directly into a container or truck. This machine has proven useful for construction work, renovations, landscaping, tunnelling, farmwork, and more.
Daily use of this type of machinery requires the guarantee of safety, reliability, and performance. This hard-wearing, high-performance mini dumper suitably delivers. Through the use of cutting-edge technology, the HS701 delivers a series of benefits, from the patented high-tipping system, innovative control panel and hydraulic transmission to the tracks and fold-away footplate.
A single operator can safely load and unload operations from a height into a truck or container thanks to the patented high-tipping system using vertical guides. Hydraulic transmission allows the operator to adjust the speed as required: high speed for flat surfaces and low speed for rough terrain, achieving optimal productivity and efficiency through lower maintenance and fuel consumption.
Operator safety is ensured by the levers provided within easy reach whilst driving. The dumper offers excellent manoeuvrability as the footplate can be made smaller, and the possibility of working on uneven, muddy, sandy or sloping ground is achieved thanks to the grease-tensioned rubber tracks.
| Petrol engine: | Honda GX270 |
| Pistons and displacement: | single-cylinder 270 cc |
| Max gross power: | 8,4 HP - 6,3 kW@3600rpm |
| Starting: | electric |
| Granted noise level (petrol engine): | Lwa 99dB |
| Diesel engine: | Kubota OC95 |
| Pistons and displacement: | single-cylinder 416 cc |
| Max gross power: | 9,4 HP - 7 kW@3600rpm |
| Starting: | electric |
| Granted noise level (diesel engine): | Lwa 101dB |
| Max. inclination: | 15° (diesel version and dumper bed lowered) |
| Type distributor: | mechanical |
| Hydraulic pumps: number and type: | n° 3 gear pumps |
| Track tensioner: | grease |
| Track width: | 180 mm |
| Rollers per side: | 3 |
| Translation speed petrol engine: | 2,2 - 3,3 km/h |
| Translation speed diesel engine: | 2,2 - 3,3 km/h |
| Variable width undercarriages as std: | 758 - 1058 mm |
| Capacity: | 550 kg |
| Dumper bed capacity: rated volume: | 0,29 m3 |
| Dumper bed capacity: struck volume: | 0,24 m3 |
| Operating weight - petrol engine: | 620 kg (fixed undercarriage) - 700 kg (widening undercarriage) |
| Operating weight - diesel engine: | 660 kg (fixed undercarriage) - 740 kg (widening undercarriage) |

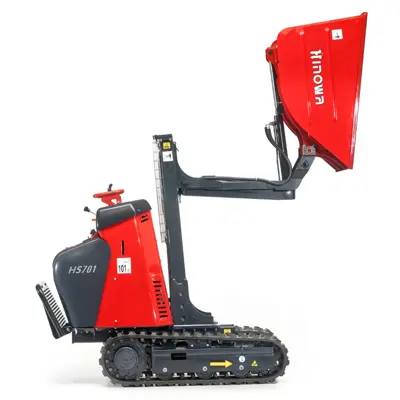

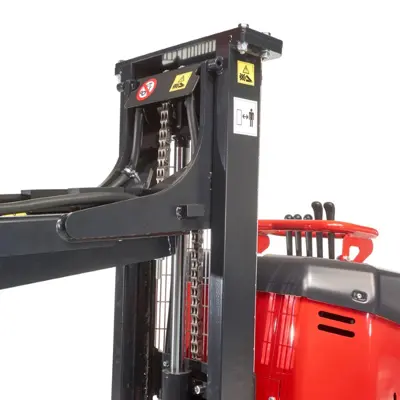

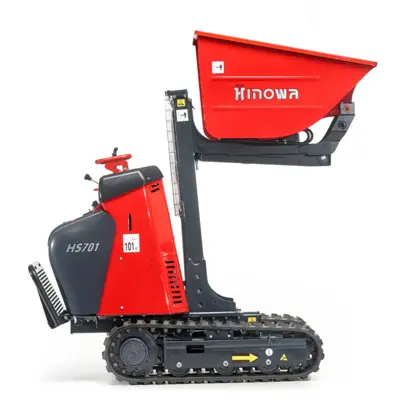

Patented High-Tipping System: The unique self-loading, high dumping system with vertical guides enables a single operator to load and unload from a height.
Ergonomic Control Panel: The comfortable and user-friendly control panel is situated in front of the operator. All control levels are easy to reach and a grab handle bar secures the operator while working.
Hydraulic Transmission: This advanced technology allows the operator to select the most suitable speed for the terrain, providing smooth control, increasing efficiency and productivity through reducing fuel consumption and maintenance.
Grease-Tensioned Rubber Tracks: Offers excellent flexibility, manoeuvrability and comfort by ensuring a smooth drive for the operator.
Extending Undercarriage: Widens the overall width from 758mm to 1058mm. At minimum width, the Hinowa minidumper can easily fit through a standard door, whilst offering great stability in all conditions at maximum width.
Folding Footboard: When the board is down, the operator can use it to safely enter or exit from the machine. When the board is folded up, the overall length is minimised to save space for transportation and storage.
