LGMG A14JE 13.8m Electric Articulating Boom Lift

  • 15.8m Max Working Height
  • Auto Levelling Platform
  • Hydraulic Platform Rotation
  • Anti-Collision Protection
  • Full Height Drive
  • Fully Electric
Price Match
Rapid Delivery
2 Year Warranty
£51,289.20 (inc VAT)
Visa accepted Master Card accepted PayPal pay accepted Pay by Bank accepted BACS payments accepted

Call FREE for expert advice

0808 196 9388


13.8m Platform Height: The A14JE offers great ability to extend over obstacles for the widest reach, supporting 15.8m working height.

AC Motors: Lifting and driving is facilitated by AC motors which power the unit for maintenance-free lifting operation.

Proportional Control: The proportional lift and drive controls deliver permits precise control and comfortable operation.

Easy Operation: The auto-levelling, hydraulic platform rotation delivers exceptional productivity and intuitive control.

Eco-friendly, Zero Emissions: The A14JE provides environmentally friendly, zero emission operation for both indoor and outdoor applications.

Horn/Hour Meter: The meters are included so you can keep track of your usage for cost and energy efficiency.

Intelligent Diagnostic System: Featuring integrated anti-collision protection, overload sensing system, over tilt protection and emergency descent with alarm for ultimate safety and security.

Two Battery Options: Choose between lead-acid battery and lithium battery for the most convenience.

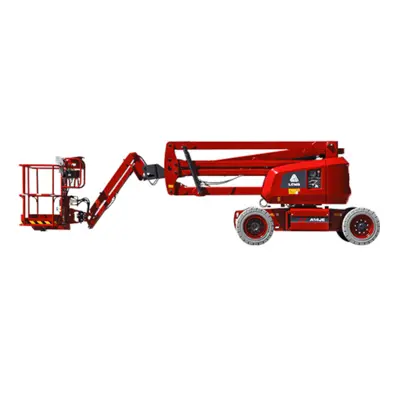

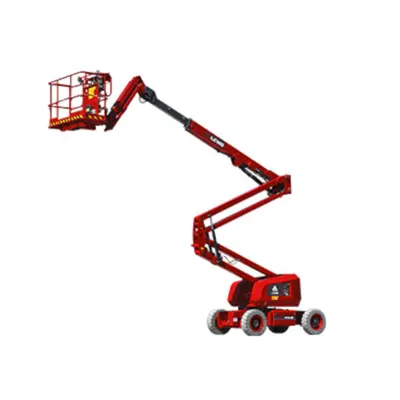

LGMG A14JE Electric Articulating Boom Lift

Smooth, precise & quiet electric boom

The LGMG A14JE Electric Articulating Boom Lift provides a quiet, zero-emission operation. It features a 13.8m platform height, offering a 15.8m maximum working height. The jib delivers a 7.81m horizontal outreach, capable of extending over obstacles outdoors and in tight working areas. The A14JE offers excellent up-and-over access and a long battery duty cycle, boasting a 230kg platform capacity.

The simple and reliable design and compact size make this articulating boom ideal for confined, busy work areas. The small tail swing and tight turning radius optimise the suitability to space-limited zones. Featuring a real-wheel drive and break, the battery powered unit and foam-filled non-marking tires provides quiet and non-disruptive lifting performance.

The LGMG A14JE is easy to operate. The proportional control permits precise positioning and smooth driving for comfortable operation. The self-levelling platform, equipped with a tool box, in combination with the hydraulic platform rotation delivers exceptional productivity and intuitive control. Additionally, the intelligent diagnostic system allows for quick troubleshooting, reducing potential downtime.

See More Like This: Cherry Pickers


Max Work Height: 15.8m
Raised Platform Height: 13.8m
Horizontal Outreach: 7.81m
Up and Over Height: 7.26m
Platform Length: 1.83m
Platform Width: 0.76m
Platform Capacity: 230kg
Stowed Length: 6.66m
Length-Transport (Jib Tucked): 5.67m
Overall Width: 1.8m
Stowed Height: 1.98m
Height-Transport: 2.54m
Wheelbase: 2.03m
Ground Clearance: 0.24m
Max Occupants: 2
Turntable Rotation 355°
Stowed Drive Speed: 4.8km/h
Raised Drive Speed: 1km/h
Gradeability: 30%
Inside Turning Radius: 1.83m
Outside Turning Radius: 4.1m
Max Slope: 3°/3°
Tyre Type: Foam Filled
Tyre Size: 9-14.5
Power Source: 48v 280A
Hydraulic Oil Volume: 30L
Machine Weight: 7500kg
