  • LGMG A13JE 13m Electric Articulating Boom Lift
  • LGMG A13JE 13m Electric Articulating Boom Lift
  • LGMG A13JE 13m Electric Articulating Boom Lift
  • LGMG A13JE 13m Electric Articulating Boom Lift

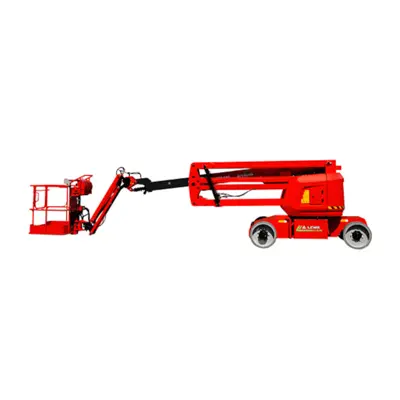

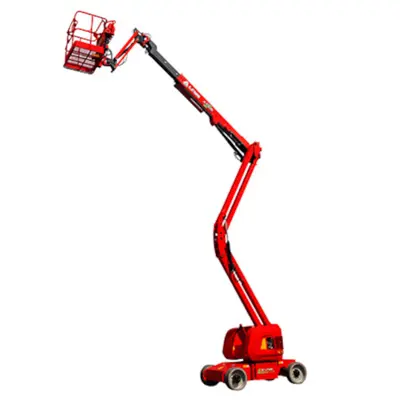

LGMG A13JE 13m Electric Articulating Boom Lift

  • 13m Max Working Height
  • Hydraulic Platform Rotation
  • Auto Levelling Platform
  • Anti-Collision Protection
  • Full Height Drive
  • Fully Electric
Price Match
Rapid Delivery
2 Year Warranty
£45,703.20 (inc VAT)
Visa accepted Master Card accepted PayPal pay accepted Pay by Bank accepted BACS payments accepted

Call FREE for expert advice

0808 196 9388


13m Platform Height: The A13JE offers great ability to extend over obstacles for the widest reach, supporting 15m working height.

AC Motors: Lifting and driving is facilitated by AC motors which power the unit for maintenance-free lifting operation.

Proportional Control: The proportional lift and drive controls deliver permits precise control and comfortable operation.

Easy Operation: The auto-levelling, hydraulic platform rotation delivers exceptional productivity and intuitive control.

Eco-friendly, Zero Emissions: The A13JE provides environmentally friendly, zero emission operation for both indoor and outdoor applications.

Horn/Hour Meter: The meters are included so you can keep track of your usage for cost and energy efficiency.

Intelligent Diagnostic System: Featuring integrated anti-collision protection, overload sensing system, over tilt protection and emergency descent with alarm for ultimate safety and security.

Two Battery Options: Choose between lead-acid battery and lithium battery for the most convenience.


LGMG A13JE 13m Electric Articulating Boom Lift

Smooth, precise & quiet electric boom

The LGMG A13JE Electric Articulating Boom Lift provides a quiet, environmentally friendly and zero-emission operation. It features a 13m platform height, offering a 15m maximum working height. The jib delivers a 7.46m horizontal outreach, capable of extending over obstacles outdoors and in tight working areas. The A13JE offers excellent up-and-over access and a long battery duty cycle, boasting a 200kg platform capacity.

The simple and reliable design and compact size make this articulating boom ideal for confined, busy work areas. The small tail swing and tight turning radius optimise the suitability to space-limited zones. The battery powered unit and solid non-marking tires provides quiet and non-disruptive lifting performance.

The LGMG A13JE is conveniently easy to operate. The proportional control permits precise positioning and smooth driving for comfortable operation. The self-levelling platform in comination with the hydraulic platform rotation delivers exceptional productivity and intuitive control. Additionally, the intelligent diagnostic system allows for quick troubleshooting, reducing potential downtime.

See More Like This: Cherry Pickers


Max Work Height: 15m
Raised Platform Height: 13m
Horizontal Outreach: 7.46m
Up and Over Height: 7.1m
Platform Length: 1.2m
Platform Width: 0.9m
Platform Capacity: 200kg
Stowed Length: 6.7m
Length-Transport (Jib Tucked): 5.76m
Overall Width: 1.5m
Stowed Height: 1.98m
Height-Transport: 2.66m
Wheelbase: 2.03m
Ground Clearance: 0.2m
Max Occupants: 2
Turntable Rotation 355°
Stowed Drive Speed: 5km/h
Raised Drive Speed: 0.8km/h
Gradeability: 30%
Max Wind Speed: 12.5m/s
Inside Turning Radius: 2.2m
Outside Turning Radius: 4.07m
Max Slope: 3°/3°
Tyre Type: Solid Non-Marking
Tyre Size: 600x190mm
Power Source: 48v 250A
Hydraulic Oil Volume: 25L
Machine Weight: 6950kg
