0808 196 93889m Platform Height: The A09JE offers great ability to extend over obstacles for the widest reach.
AC Motors: Lifting and driving is facilitated by AC motors which power the unit for maintenance-free lifting operation.
Proportional Control: The proportional lift and drive controls deliver the best compound action, while the dual joystick controller permits precise control for even smaller movements.
Ultra-compact Chassis: Measuring just 1.19m (3'11") the boom lift fits through standard doorways offering high versatility and flexibility.
Flexible Operation: The full-height drive is facilitated by the auto-levelling platform plus the flexible jib that can swing ±90° horizontally, boasting a wider working range.
Eco-friendly, Zero Emissions: The A09JE provides environmentally friendly, zero emission operation for both indoor and outdoor applications.
Horn/Hour Meter: The meters are included so you can keep track of your usage for cost and energy efficiency.
Intelligent Diagnostic System: Featuring integrated anti-collision protection, overload sensing system, over tilt protection and emergency descent for ultimate safety and security.

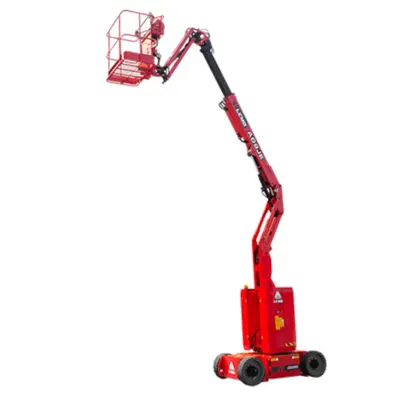

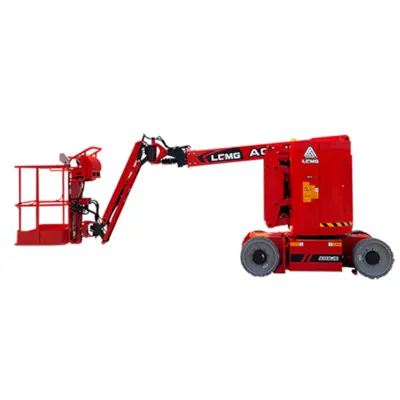

The LGMG A09JE-RJ Electric Articulating Boom Lift delivers environmentally friendly, zero-emission operation for both indoor and outdoor applications. It has a 9-metre platform height, offering an 11-meter maximum working height. The rotating jib also provides a 6.25-metre horizontal outreach and can extend over obstacles outdoors and in tight working areas. The A09JE offers excellent up-and-over access, with a 230kg platform capacity.
The ultra-compact chassis measures just 1.19m, which fits through standard doorways and grants highly flexbile operation. The tight turning radius increases the suitability to confined work areas and you can swing the jib 90° horizontally for a wider working range and convenient access. Featuring solid non-marking tires so you can rely on a simple, no-stress and completely environmental friendly lifting application.
Lifting and driving is facilitated by AC motors which power the unit to offer maintenance-free performance and improved safety. The proportional lift and drive controls deliver the best compound action, while the dual joystick controller permits precise control for even smaller movements.
See More Like This: Cherry Pickers
| Max Work Height: | 11m |
| Raised Platform Height: | 9m |
| Horizontal Outreach: | 6.25m |
| Up and Over Height: | 4.12m |
| Platform Length: | 1.17m |
| Platform Width: | 0.76m |
| Platform Capacity: | 230kg |
| Stowed Length: | 5.46m |
| Length-Transport (Jib Tucked): | 3.58m |
| Overall Width: | 1.19m |
| Stowed Height: | 2m |
| Height-Transport: | 2.52m |
| Wheelbase: | 1.58m |
| Ground Clearance: | 0.09m |
| Max Occupants: | 2 |
| Turntable Rotation | 355° |
| Stowed Drive Speed: | 5km/h |
| Raised Drive Speed: | 0.65km/h |
| Gradeability: | 30% |
| Max Wind Speed: | 12.5m/s |
| Inside Turning Radius: | 1.65m |
| Outside Turning Radius: | 3.15m |
| Max Slope: | 2.5°/4.5° |
| Tyre Type: | Solid Non-Marking |
| Tyre Size: | 560x180mm |
| Power Source: | 48v 390A |
| Hydraulic Oil Volume: | 17L |
| Machine Weight: | 6700kg |
