LGMG S1413EII 13.8m Electric Scissor Lift

  • Second Generation Range
  • 13.8m Raised Platform Height
  • Indoor & Outdoor Rated
  • Proportional Control For Precision
  • Foldable Features For Accessibility
  • Universal Key Components
2 Year Warranty

Call for Price

Call FREE for expert advice

0808 196 9388

Features

Large Lower Control Panel: Effortlessly control and troubleshoot the scissor lift from the ground with ease, efficiency and convenience.

Universal Key Components: Facilitates quick replacement and maintenance, reducing operational costs and minimising downtime, ensuring seamless performance.

Indoor & Outdoor Rated: This versatile and adaptable machine is designed for working at heights in various indoor and outdoor job site applications.

Proportional Control: Enables precise and smooth operation, allowing operators to manoeuvre the lift with accuracy for enhanced safety and productivity.

Folding Features: Including the foldable ladder, foldable guardrail and swing-out component tray for quick and easy usage, optimising workflow, transportation and storage.

Intelligent Diagnostic System: Featuring emergency integrated tilt alarm with lift cut-out, all motions alarm and overload sensing system for quick troubleshooting, reducing potential downtime.

Improved Safety Features: Including the self-lock entry gate, pothole guard, emergency stop and descent device plus manual brake release for ultimate safety and security.

Description

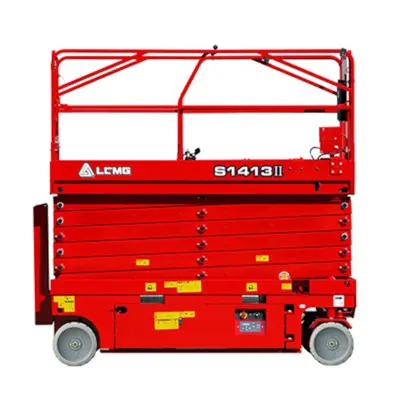

LGMG S1413EII 13.8m Electric Scissor Lift

Quiet, efficient & versatile access solution

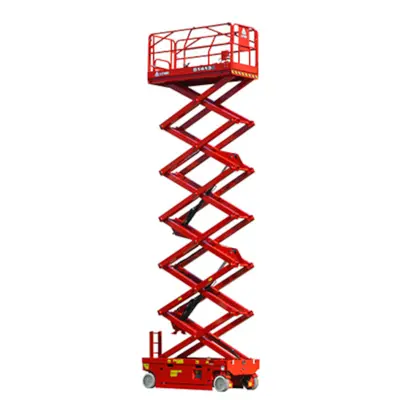

The new and improved second generation LGMG S1413EII Electric Scissor Lift boasts enhanced performance, convenience and safety. The S1413EII provides a 13.8m raised platform height that offers a maximum 15.8m working height, impressing with a large platform capacity of 320kg.

For both indoor & outdoor applications

Rated for both indoor and outdoor use, the S1413EII offers an incredibly versatile and useful solution for working at heights. Two people can occupy the platform during indoor use, improving on-site requirements, productivity and efficiency. One person is permitted to occupy the work platform during outdoor use.

Convenient lower control panel

The lower control panel boasts a large display, ensuring effortless user control and troubleshooting directly from the ground. This feature enhances convenience and efficiency during operation. With intuitive controls and clear feedback, users can easily manage all functions of the LGMG S1413EII Electric Scissor Lift without hassle.

Foldable ladder for accessibility

Equipped with a foldable ladder, accessing the platform of the scissor lift becomes a breeze. This ladder provides safety and assistance during setup and maintenance tasks. The foldable design facilitates compact storage when not in use, optimising space and improving portability.

Interchangeable key components

The LGMG S1413EII incorporates universal key components such as joysticks, drive motors, motor controllers, and chargers. These interchangeable parts facilitate quick replacement and maintenance, reducing operational costs and minimizing downtime. Compatible with existing models on the market, sourcing replacements is convenient and cost-effective.


See More Like This: Scissor Lifts

Specification

Max Work Height: 15.8m
Raised Platform Height: 13.8m
Platform Length: 2.64m
Platform Width: 1.12m
Overall Length: 2.8m
Overall Width: 1.3m
Overall Guardrails Height (Up): 2.74m
Overall Guardrails Height (Down): 1.94m
Extension Deck: 0.9m
Wheelbase: 2.22m
Ground Clearance (Stowed/Raised): 105/20mm
Max Platform Occupants: 2
Platform Capacity: 320kg
Extension Deck Capacity: 120kg
Drive Height: Full Height
Gradeability (Lowered): 25%
Min Turning Radius: 2.85m
Raise/Lower Speed: 80/65s
Brakes: Rear-Wheel Brakes
Drive Mode: 4x2
Tyre Type: Solid Non-Marking
Tyre Size: 380x130mm
Power Source: 24V 300A
Hydraulic Oil Volume: 25.5L
Machine Weight: 3500kg
