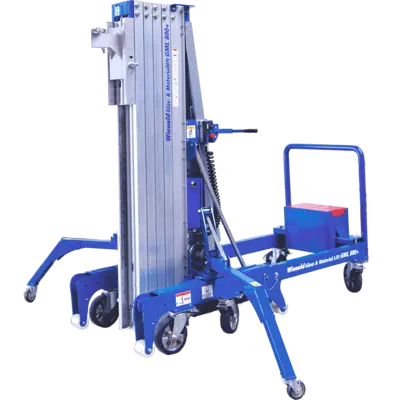

Wienold GML 800+ 20/M Glass & Material Lift

  • 6.10m Lifting Height
  • 800kg Safe Working Load
  • 2 Backwards Outriggers
  • Worm Gear Winch
  • Robust Locking Castors
  • Double Safety Brake
1 Year Warranty

Call for Price

Call FREE for expert advice

0808 196 9388

Features

Large Load Capacity: This manual glass and material lift allows you to raise loads of up to 800kg to heights of 6.10m.

Foldable Frame: You can fold the frame up for convenient storage and easy transport.

Robust Locking Castors: Facilitates easy manoeuvring and stability.

Worm Gear Winch: Complete with an adjustable crank handle enabling heavier loads to be lifted more easily. The winch also stops if the tension on the rope is too low.

Redesigned Mast System: The Wienold GML has been widened, reinforced and equipped with a double safety brake and a steel manufactured chassis frame to facilitate large payload.

Reinforced Safety Features: Featuring lock-in castors for in-line steering and backwards outriggers to prevent toppling.

Description

Wienold GML 800+ 20/M Lift

Redefines the handling of heavy loads

The Wienold GML 800+ 20/M lift redefines the handling of heavy loads in a completely new way. It offers unparalleled safe working loads for material lifts of this type. You can fold the frame up for convenient storage and transport, while the robust locking castors provides easy manoeuvring and stability.

Manually raise loads of up to 800kg

This manual glass and material lift allows you to raise loads of up to 800kg to heights of 6.10m. The worm gear winch is complete with an adjustable crank handle which, when extended fully, enables heavier loads to be lifted more easily. The winch also stops if the tension on the rope is too low.

Redesigned, reconfigured & reinforced

The mast system of the Wienold GML 800+ 20/M Lift has been completely redesigned; it has been widened, reinforced and equipped with a double safety brake. The steel manufactured chassis frame has also been completely refigured to adapt to the enormous payload. Pulleys, bearings, ropes and many other components are generously dimensioned and designed for durability. It features locking castors for in-line steering and backwards outriggers to prevent toppling.


See More Like This: Material Lifts

Specification

Lifting Height: 6.10m
Transport Position HxLxW: 1.98x1.10x0.81m
Working Position HxLxW: 1.98x1.94x0.81m
Payload Max: 800kg
Weight Without Attachments: 382kg
Machine weight: 600kg
