0808 196 9388Screw Wiring Terminals: Simplifies installation & maintenance processes
Halogen-Free & Glow Wire Tested: Improves safety & minimises environmental impact
32A, 200-250V, 50/60Hz: Suitable for a wide range of medium-current applications
Stainless Steel External Elements: Provides exceptional durability & long-lasting performance
IP66-IP69 Protection: Offers resistance against dust, water jets & immersion
Nickel-Plated Sleeves & Pins: Delivers superior resistance to corrosion, oxidation & abrasion
2P+E, 6h Position, Blue: Facilitates easy identification & compatibility with specific installations
IK09 Impact Resistance: Withstands rough handling & accidental impacts in demanding environments

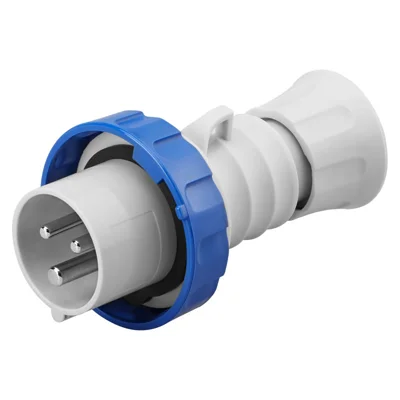

This Gewiss 32 amp straight plug, part of the IEC 309 HP range, is designed to provide a reliable and versatile power solution for a wide range of applications. With a rated current of 32A, a voltage of 200-250V, and a frequency of 50/60Hz, this plug is suitable for use with various equipment and machinery. The distinctive blue colour allows for easy identification and ensures compatibility with specific installations.
The plug features 2P+E poles and a 6h earthing contact position, ensuring safe and efficient power distribution. It is compatible with both 2.5-6mm² flexible cables and 2.5-10mm² rigid cables, providing flexibility in wiring options. The cable clamp tightening capacity of 9.2-19.9 mm ensures a secure connection, while the user-friendly screw wiring terminals make installation and maintenance a breeze.
Constructed with high-quality technopolymers of sufficient thickness, the insulating parts of the plug offer excellent resistance to mechanical stress and chemical agents. The sleeves and pins are surface-treated with nickel-plating to protect against corrosion, oxidation, and abrasion, ensuring long-lasting performance. The plug's IP66/IP67/IP68/IP69 degree of protection and IK09 rating demonstrates its ability to withstand harsh environments, including dust ingress, powerful water jets, and impact.
This 3 pin outdoor plug complies with international standards IEC 60309-1 and IEC 60309-2, as well as European standards EN 60309-1 and EN 60309-2, ensuring its suitability for a wide range of applications. With an operating temperature range of -25 to +55°C, this plug is designed to perform reliably in various environmental conditions.
See More Like This: New Arrivals
| Colour | Blue |
|---|---|
| Rated current (A) | 32 |
| IP degree | IP66/IP67/IP68/IP69 |
| No. of poles | 2P+E |
| Mechanical resistance | IK09 |
| Reference h | 6 |
| Type | Straight plug |
| Rated voltage | 200 - 250 V |
| Frequency | 50/60 Hz |
| Terminal tightening capacity | 2.5-6mm² flexible cables - 2.5-10mm² rigid cables |
| Cable clamp tightening capacity | 9.2-19.9 mm |
| Operating temperature | -25 +55 °C |
| Type of wiring | With screw |
| Type of material | Halogen-free in compliance with EN 60754-2 |
| Electrocod | 2230 |
| Glow wire test | 850 °C (active parts) - 650 °C (passive parts) |
| Total number of operations | > 2000 |
| Permissible overload | 42 A |
| Breaking capacity at 1.1 Un | 40 A |
| Insulation resistance | > 10 MΩ |
| Thermo-pressure with ball | 125 °C (active parts) - 80 °C (passive parts) |
| Ware Number | 85366990 |
